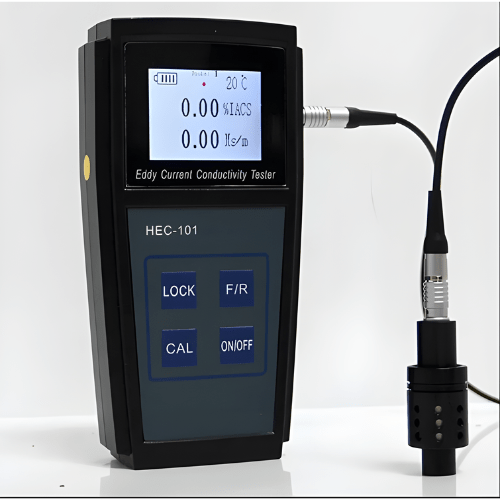

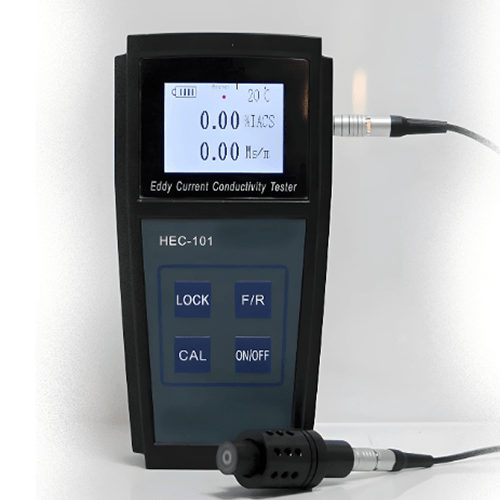

Acoustic Testing Pro High Precision Eddy Current Testing
Acoustic Testing Pro High Precision Eddy Current Testing which are designed for quick & convenient measurement of material properties, such as material separate, quality control, material state check and so on.
Overview
Acoustic Testing Pro High Precision Eddy Current Testing which are designed for quick & convenient measurement of material properties, such as material separate, quality control, material state check and so on. The products use the electromagnetism testing principle, can testing objects focus on non-ferromagnetic materials.
Features
- 60 KHz, %IACS, MS/m units, inspirit testing.
- Simultaneous conductivity and resistivity testing, with temperature compensation.
- Typeface, backlight aid data reading in low light conditions.
- High-performance battery for extended running time, portable design.
- User-friendly: probe replacement without returning, outdoor adaptability.
- Bilingual interface (English & Chinese) and 1000 data storage.
- USB connectivity for creating testing reports on a PC.
Technical Specifications
| Operating Frequency | 60 KHz |
| Display Screen | Monochrome |
| Instrument Case | Anti-intense impact, waterproofing |
| Power Supply | High capacity, high performance lithium polymer battery |
| Measuring Range | 1% IACS to 105% IACS (0.58 MS/m to 61 MS/m) |
| Distinguishing Rate | 0.1% IACS |
| Measuring Accuracy | 5 to 40 23 % IACS ±0.5 %IACS 100 %IACS ±8 %IACS |
| Temperature Compensation | 41 °F to 104 °F (5 ℃ to 40 ℃) |
| Relative Humidity | 0 % to 95% |
| Operating Temperature | 41 °F to 104 °F (5 ℃ to 40 ℃) |
| Weight | 300 g |
| L*B*H | 7.09 in x 2.99 in x 1.38 in (180 mm x 76 mm x 35 mm) |
