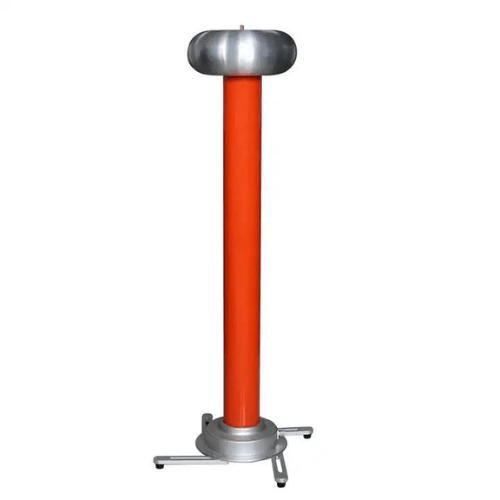

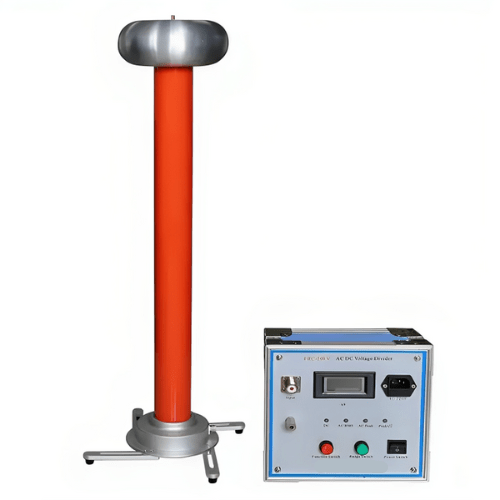

Acoustic Testing Pro High Precision Digital Kilovoltmeter
Acoustic Testing Pro high precision digital kilovoltmeter is another type of AC DC voltage divider.
Overview
Acoustic Testing Pro high precision digital kilovoltmeter is another type of AC DC voltage divider. Oil insulation typed high voltage divider is the latest researched and developed product based on dry insulation type, compared to dry insulation material of high voltage divider, oil insulation material of voltage divider has higher stability, more durability and longer operation time, the internal part of the divider have used several patented shielding technologies, so that the product has a longer life and greater stability.
Features
- Has more durability and longer operation time
- No thermal breakdown
- Equipped with peak meter, with four measurement function
- The frequency is between 30 Hz to 300 Hz
- Suitable for AC resonant withstand voltage test
- Special shield technology is adopted
- Reduce the influence of high voltage on indicated value
- With functions of over-voltage protection and high voltage flashover protection
- Measurement system and the high voltage part is completely separated absolutely
- Measurement is safe and reliable
- The product has a small volume and is lightweight
Technical Specifications
| Test Voltage | AC or DC, 50 KV, 100 KV, 200 kV, 300 KV |
| Accuracy | AC 1.5%, 1.0%, 0.5%, DC 1.0%, 0.5% |
| Measuring function | DC value, AC RMS value, AC peak value |
| Insulation material | Insulation oil |
| Voltage division ratio | can be customize |
| Altitude | <0.62 mi (<1 km) |
| Relative Humidity | RH <85%, without condensation |
| Operating Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
