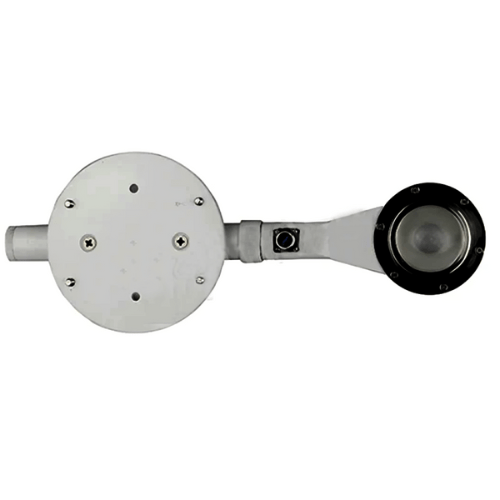

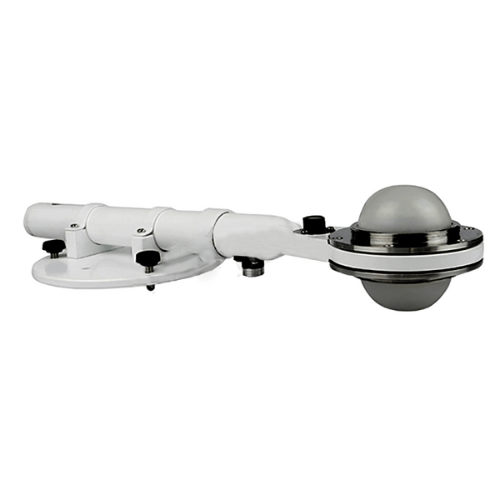

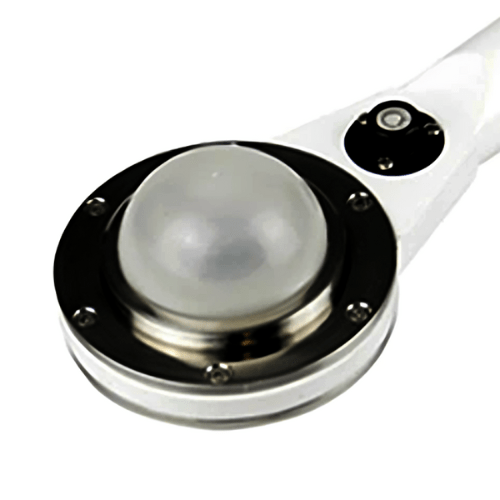

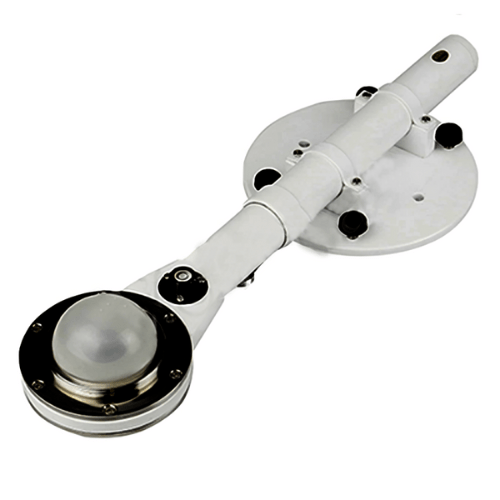

Acoustic Testing Pro High Performance Radiation Table Sensor Meter
Acoustic Testing Pro high performance radiation table sensor meter is a new type of net meter developed on the basis of the traditional net radiation meter.
Overview
It solves the shortcomings of the traditional net meter, such as often inflating it with balloons (once/3 days), frequently replacing the polyethylene transparent film (once/months), poor sealing performance, easy entry of water, manual maintenance, etc.
Features
- Fast response
- Wide spectrum response
- Good linearity
- Stable operating
Technical Specifications
| Sensitivity | 7 µV/WM2 to 14 µV/WM2 |
| Spectral Region | 0.28 µm to 50µm |
| Response Time | ≤ 1 min (99%) |
| Tolerance Of Two-Sided Sensitivity | ≤ 10% |
| Resistance | About 150Ω |
| Output | 0 mV to 20 mV |
| Working Temperature | -58 °F to 122 °F (-50 °C to 50 °C) |
| Weight | 2.2 lb (1.0 Kg) |
