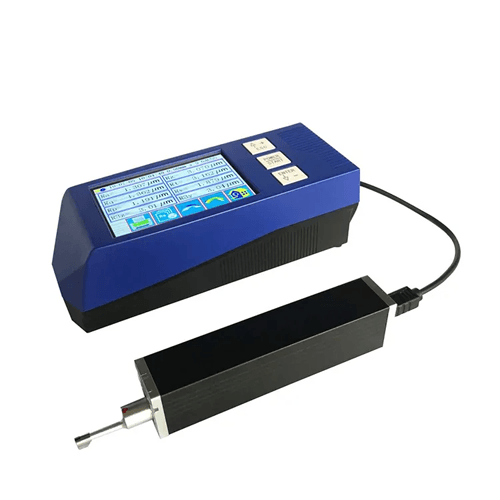

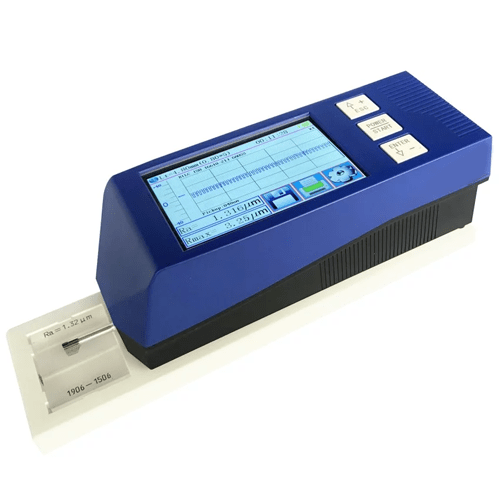

Acoustic Testing Pro High Accuracy Surface Roughness Tester
This High Accuracy Surface Roughness Tester has Sample length of 0.0098 in, 0.003 in, 0.009 in, Lead head radius 1.4 in an Indication error ≤ ±7%.
Features
- Users-friendly system and intuitive menu navigation
- general measuring and Split type measuring (take off sensor) can be selected
- Multi-direction measurement such as lateral and upside
- DSP chip controlled achieves high accuracy and fast testing speed
- 5 in (50 mm) LCD touch screen, digital and color graphic display with backlight
- Touch screen & button operation are both available
- Rechargeable Li-ion battery allows you to make on-site measurements (> 50 hours continuously)
- Multi-functions: Bluetooth printing, Operation by APP, operate indications, Automatic sleep/shutdown and etc.
- Calculation results, assessed profiles, bearing and amplitude curves can be displayed
- Easy to connect with computer and printer
Technical Specification
| Measuring range | 160 μm( -80 μm to +80 μm)/ Optional :320 µm ( -160μm to +160μm) | ||
| Maximum drive stroke length | 0.78 in (20 mm) | ||
| Resolution | 0.001 μm | ||
| Sample length (lr) | 0.0098 in, 0.003 in, 0.009 in (0.25 mm, 0.8 mm,2.5mm) | ||
| Evaluation length(ln) | Ln= lr × n=1 to 5 | ||
| Stylus force | <4mN | ||
| Lead head | radius 1.4 in (40 mm) | ||
| Indication error | ≤ ±7% | ||
| Indication variability | < 6% | ||
| Memory | 100 groups (data and graphic) | ||
| Power supply | Rechargeable Li-ion battery | ||
| Operation environment | Temperature: – 4 °F to 104°F (-20℃ to 40℃), Humidity:<90% RH | ||
| Weight | 0.83 lb (380g) | ||
| Dimension (mm) | Main body: 2.5 in x 2.08 in x 6.2 in (64 mm x 53 mm x 160 mm) | ||
