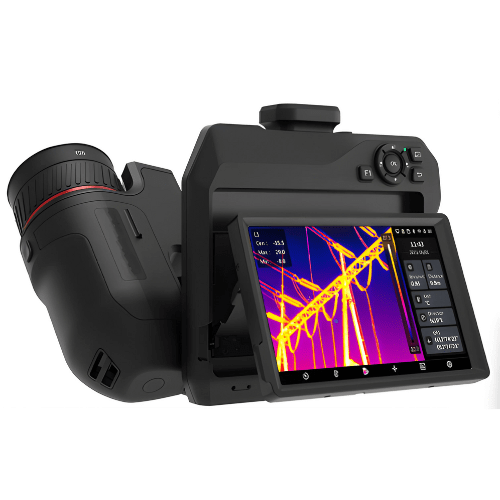

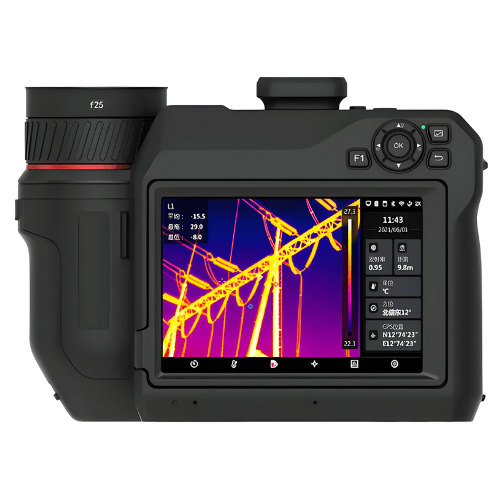

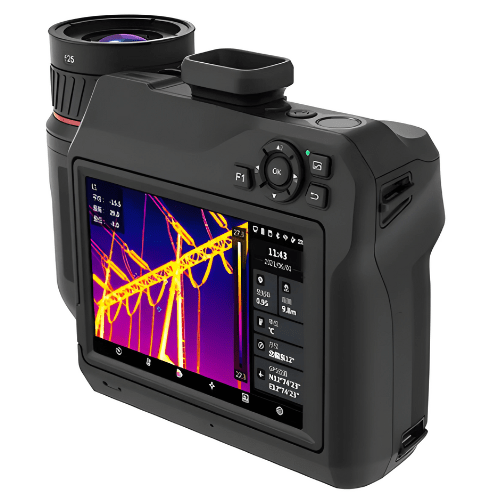

Acoustic Testing Pro Handheld Thermal Imaging Detector Camera
Acoustic Testing Pro handheld thermal imaging detector camera is widely used in power, industrial, forecasting, petrochemical, public infrastructure maintenance and other fields.
Overview
The camera is equipped with a high-sensitivity 640 × 512 detector, which can accurately measure temperature up to 1202 °F. The viewfinder and 356 °F rotatable lens makes all-weather outdoor inspections more convenient.
Features
- Support display 90° rotation
- Support 1X to 12X continuous digital zoom
- Support automatic AGC, manual AGC, one-key AGC
- Temperature measurement range 4° F to 1202° F
- Support lens rotation up to 180°
Technical Specifications
| IR Detector Resolution | 640 × 512 (327,680pixel) |
| Infrared Image Resolution | 640 × 480 (307,200pixel) |
| Thermal Imaging Lens Focal Length | 0.98-in (25.0 mm) |
| Focus Speed | About 1 s |
| Minimum Focus Distance | 0.65 ft (0.2 m) |
| Lens Recognition | Automatic |
| Aperture Number | F 1.0 |
| Display | 1280 × 720, 5-inch LCD touch screen |
| screen Brightness | Manual and automatic adjustment |
| lens Rotation | 180° |
| Display Rotation | 90° |
| Viewfinder | Built-in, 1024 × 768 pixels |
| Field Of View | 24.8° (H) x 18.7° (V), 65° (H) x 51° (V) |
| Cell Size | 17 µm |
| Spatial Resolution | 0.68 mrad |
| Response Band | 8 µm to 14 µm |
| NETD | <32.05 °F (-459.62 °F) @77 °F (<0.03 °C (30 mK) @25 °C) F# = 1.0 |
| Aperture Number | F 1.0 |
| Lens Recognition | Automatic |
