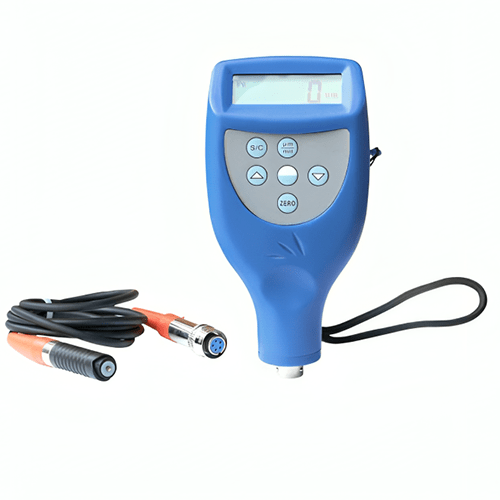

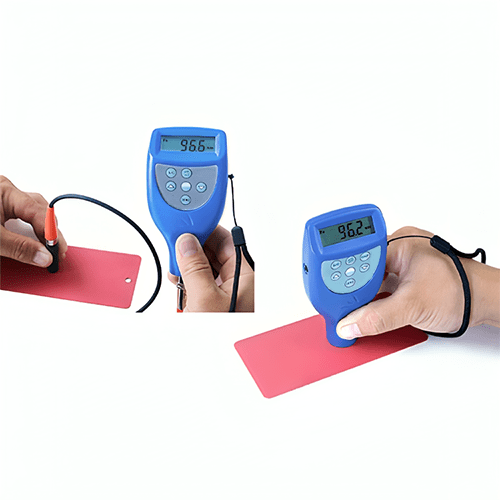

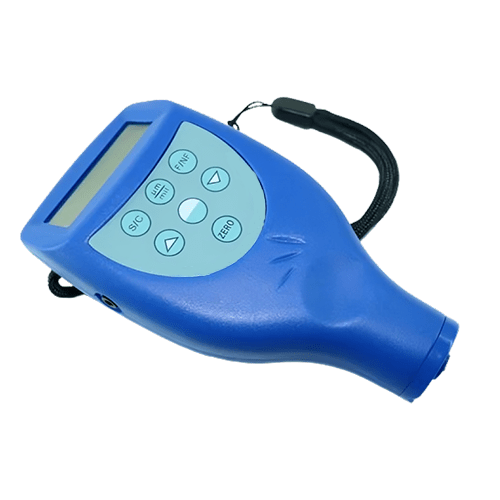

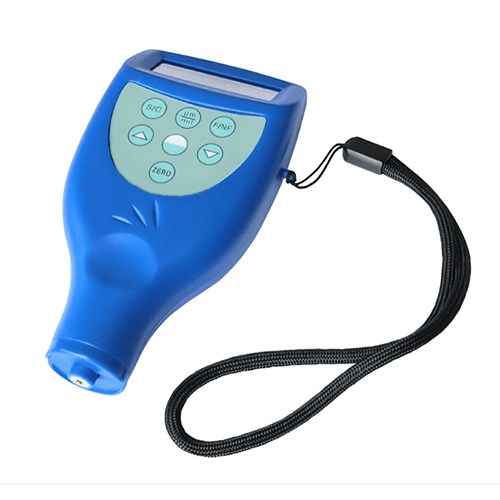

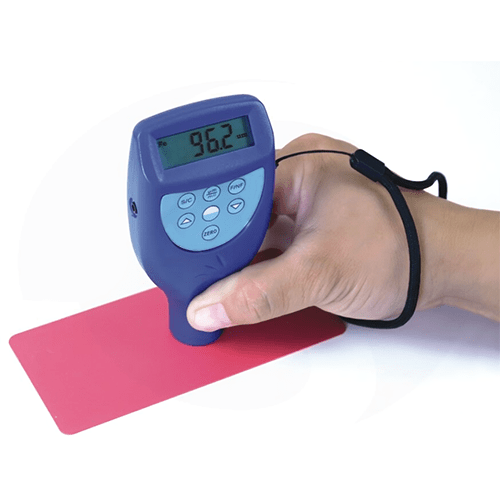

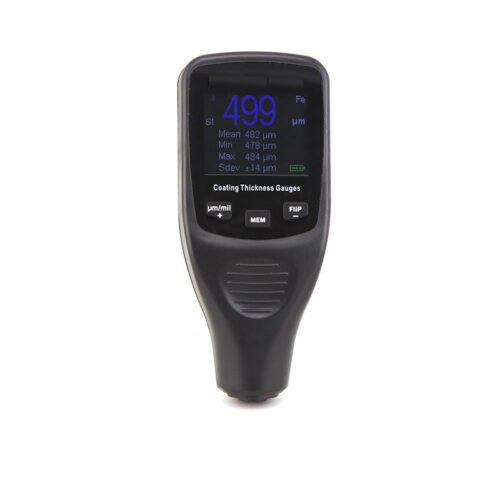

Acoustic Testing Pro Dry Film Paint Coating Thickness Gauge
Acoustic Testing Pro Dry Film Paint Coating Thickness Gauge use magnetic induction or Eddy current.
Overview
Acoustic Testing Pro Dry Film Paint Coating Thickness Gauge use magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non-magnetic coatings such as paints, zinc etc. on steel (F: ferrous probe) and insulating materials on non-ferrous substrates (Non-ferrous.). The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.
Technical Specifications
| Measuring Range | 0 μm to 1250 μm or 0 in to 1.96 in (0 mm to 50 mm) (Also can ask for larger range) |
| Resolution | 0.1 or 1 |
| Accuracy | ± 1 to 3 % or ± 2.5 μm |
| Min. Radius Work Piece | F: Convex 0.05 in (1.5mm) or Concave 0.98 in (25mm) N: Convex 0.11 in (3mm) or Concave 1.96 in (50mm) |
| Min. Measuring Area | 0.23 in2 (6 mm2) |
| Min. Sample Thickness | 0.01 in (0.3mm) |
| Metric/ Imperial | Convertible |
| Power Supply | 4 x 1.5V AA Battery |
| Battery Indicator | Low battery indicator |
| Operating Conditions | 32 °F to 104 °F (0 °C to 40 °C) ;10 %RH to 90 %RH |
| Dimension | 4.96 in x 2.55 in x 1.06 in (126 mm x 65 mm x 27 mm) |
| Weight | 0.17 lbs (81g) |
| Optional Accessories | USB cable, Software, Adapter for Bluetooth |
