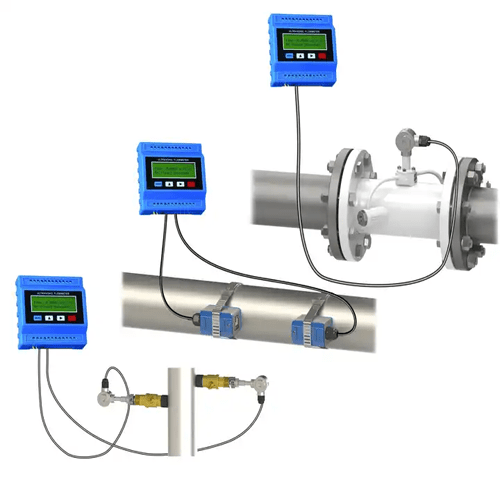

Acoustic Testing Pro Digital Ultrasonic Flow Meter
Acoustic Testing Pro digital ultrasonic flow meter is suitable for system integrators supporting projects, water resources or heating systems and other network monitoring projects flow measurement, with a small size, low price, simple operation, complete output interface features.
Overview
Acoustic Testing Pro digital ultrasonic flow meter is suitable for system integrators supporting projects, water resources or heating systems and other network monitoring projects flow measurement, with a small size, low price, simple operation, complete output interface features.
Features
- High accuracy
- Measure range is big
- High reliability
- Powerful
- Transmission distance, network shortcut
Technical Specification
| Accuracy | Flow: ±1% Thermal: ±2% |
| Operating | 4 key touch keyboard |
| Signal output | one 4 mA to 20 mA current output |
| one OCT pulse output | |
| one relay output | |
| Signal input | Three 4 ma to 20 ma current input |
| Three wire PT100 platinum resistance can be connected for thermal measurement | |
| Data interface | RS 485 interface, mod-bus protocol |
| Twisted pair | Under normal circumstances 50 m, 485 communication up to km |
| Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminum and all other dense pipes |
| Pipe size | 0.59 in to 236.22 in (15 mm to 6000 mm) |
| straight pipe | sensor installation: before sensor: 10 D, after sensor: 5 D, 30 D from the pump outlet |
| Medium | Water, water, seawater, alcohol, etc. can conduct ultrasound single uniform liquid |
| Temperature | 104 °F to 320 °F(40 °C to 160 °C) |
| Turbidity | 10000 ppm Small bubble content |
| Velocity | 0 m/s to ±10 m/S |
| Temperature | Host: -4 °F to 140 °F(-20 °C to 60 °C) Flow sensor: 104 °F to 320 °F (40 °C to 160 °C) |
| Power Supply | DC 8 V to 36 V AC 10 V to 30 V |
| Power Consumption | 1.5 W |
| Humidity | Host: 85 % RH Flow sensor: soaking work deep:<2 m Sensor after gluing |
