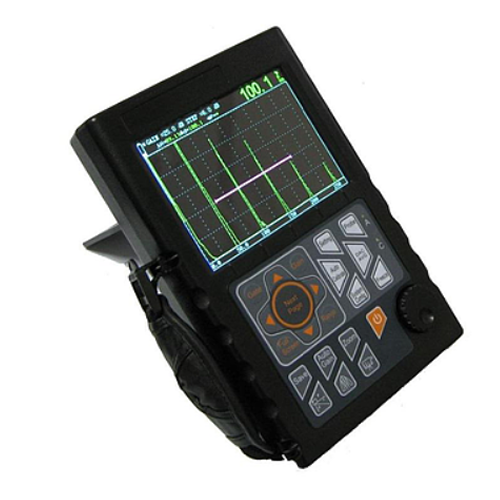

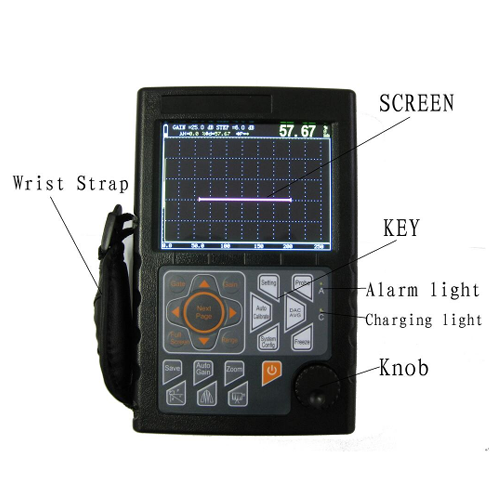

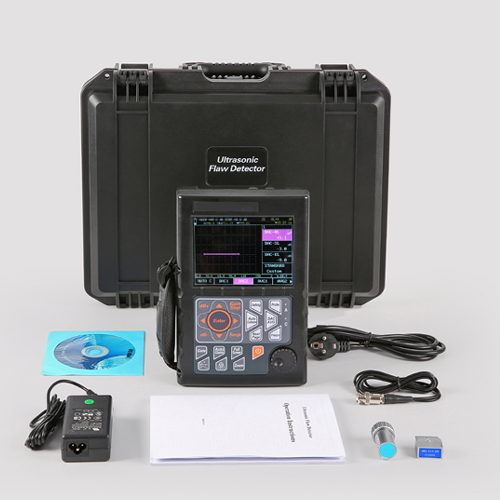

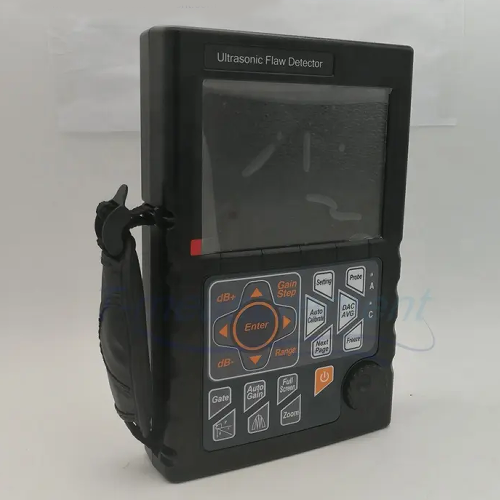

Acoustic Testing Pro Digital Ultrasonic Flaw Detector
This digital ultrasonic flaw detector has scanning range of 0 in to 393.70 in, 7.4 V 4800 mAh Li battery, working temperature of -4 °F to 122 °F.
Feature
- Designed with high performance security guarantee battery module.
- Easy disassembly and assembly.
- Independent offline charging capability.
- Large capacity and high-performance Lithium-ion battery extends working time to above 8 hours.
- Small size and lightweight design.
- One handed operation.
- Durability in use.
- Sets an industry trend.
- Range selectable in fixed steps or continuously variable.
Technical Specifications
| Range of scanning | 0 in to 393.70 in (0 mm to 10000 mm) |
| D delay | -20 us to 3400 us |
| P delay | 0.0 us to 99.99 us |
| MTLVEL | 1000 m/s to 15000 m/s |
| Sensitivity Leavings | ≥62 dB |
| Dynamic range | ≥34dB |
| Battery | Li battery 7.4 V, 4800 mAh |
| Power adaptor | Input 100V to 240V/50Hz to 60Hz Output 9VDC/1.5A |
| Port type | BNC or LEMO 001 |
| Working mode | Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
| Working temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Working humidity | 20% to 90% |
