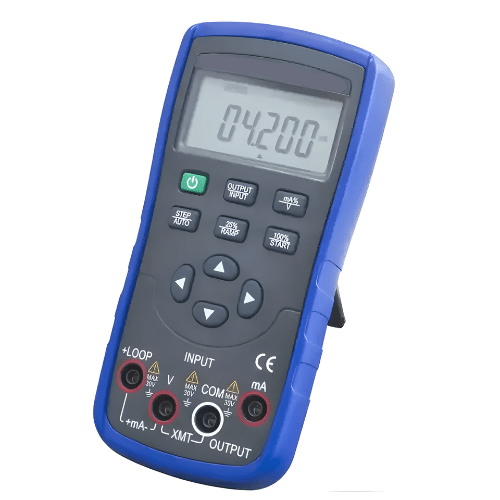

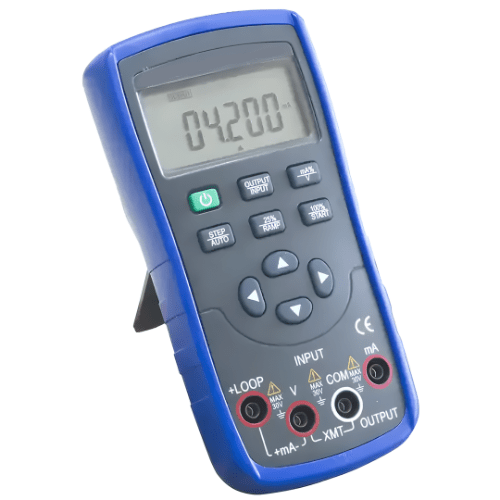

Acoustic Testing Pro Digital Handheld Process Calibrator
Acoustic Testing Pro digital handheld process calibrator can provide DC 24 V loop voltage, and measure current at the same time, and perform switch on and off measurement.
Overview
Acoustic Testing Pro digital handheld process calibrator can provide DC 24 V loop voltage, and measure current at the same time, and perform switch on and off measurement. It can perform quick operation from stepping and zero to full gear. It is suitable for on-site process loop verification, maintenance, and fault diagnosis.
Features
- Can simulate transformer
- On-off measurement
- Stepping operation
- Percentage display
- Low battery Indicator
Technical Specifications
| Elevation Limitation | Lower than 0.62 mi (1 km) |
| Power Supply | 9 V Battery (ANSI or NEDA 1604A or IEC 6LR619V Alkaline) |

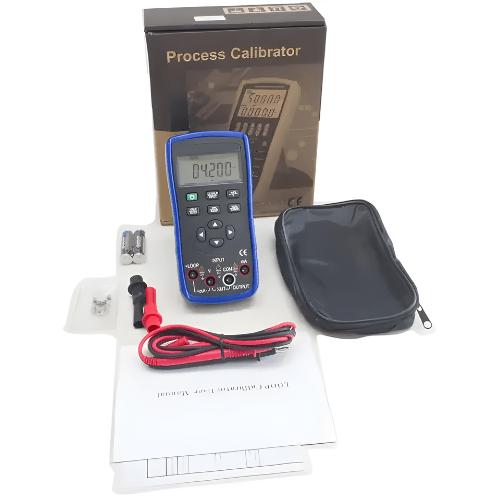

| Accessory | Industrial test lead CF-36 (probe with alligator clip), Manual |
| Digits Display | 5 digits |
| DC voltage output (DCV) | 24 V ±(10%) |
| DC current output (DCA) | 0.1 m to 22 mA ±(0.05%+4 μA) |
| DC voltage measurement | ±0.1 V to 28 V ±(0.02%+2 mV) |
| DC current measurement | ±0.001 m to 20 mA ±(0.02%+4 μA) |
| Working Environment | Temperature 32 °F to 122 °F (0 °C to 50 °C)
Lower than 80%RH without dew |
| Storage Environment | Temperature 14 °F to 41 °F (-10 °C to 5 °C)
Lower than 90%RH without dew |
| Dimension | 7.87 in x 3.94 in x 1.57 in (200 mm x 100 mm x 40 mm) |
| Weight | 1.21 lb (550 g) |
