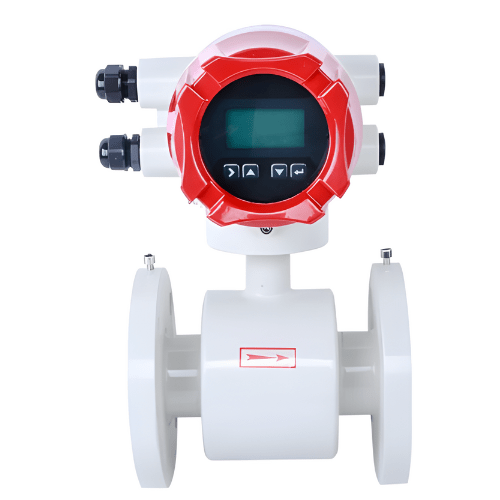

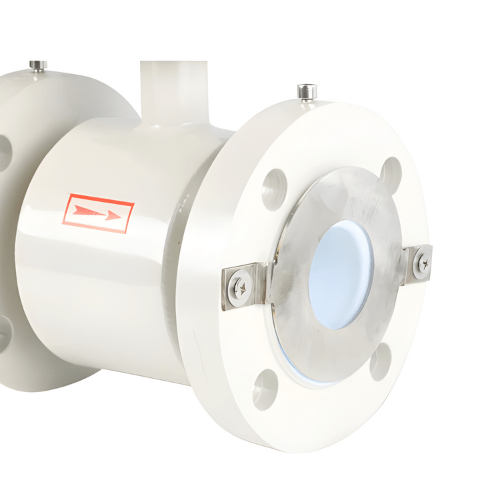

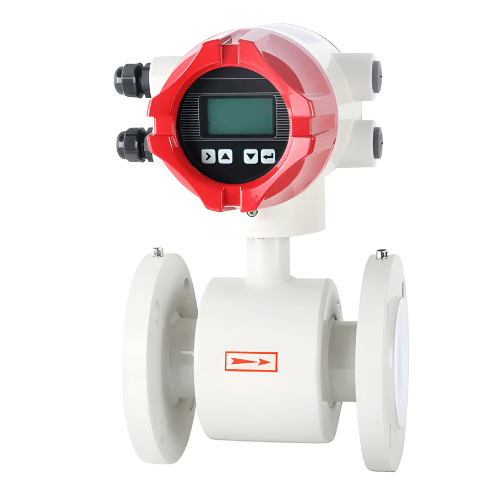

Acoustic Testing Pro Digital Electromagnetic Ultrasonic Liquid Flow Meter
Acoustic Testing Pro digital electromagnetic ultrasonic liquid flow meter is suitable for measuring the volumetric flow of conductive liquids flowing in closed pipelines and has LCD display, Pulse output and 4 to 20mA output.
Overview
Acoustic Testing Pro digital electromagnetic ultrasonic liquid flow meter is suitable for measuring the volumetric flow of conductive liquids flowing in closed pipelines and has LCD display, Pulse output and 4 to 20mA output. It is widely used in water treatment, chemicals, papermaking, medicine, metallurgy, urban construction and other fields of measurement control systems.
Technical Specifications
| Nominal Diameter | 0.59 in to 19.69 in (15 mm to 500 mm) |
| Degree of Accuracy | ±0.5% R |
| Medium Conductivity | ≥5 uS/cm, Actual conductivity ≥30 uS/cm |
| Nominal Pressure | 1.0 MPa to 4.0 MPa |
| Highest Medium Temperature | +200 °F (+80 ℃) |
| Output Signal | 4 mA to 20 mA Pulse or Frequency 2 kHz (Default), 5 KHz (Max) |
| Supply Voltage | 110 VAC or 220 VAC (100 VAC to 240 VAC), 50 Hz or 60 Hz 24 VDC ±10% |
| Communication | RS-485, Support standard Modbus-RTU protocol, GPRS |
