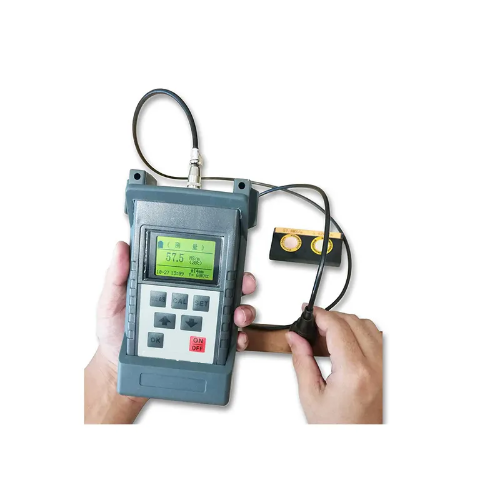

Acoustic Testing Pro Digital Conductivity Tester
Acoustic Testing Pro Digital Conductivity Tester is designed with an eddy detection method.
Overview
Acoustic Testing Pro Digital Conductivity Tester is designed with an eddy detection method. These products may be used for distinguishing, grading and so forth detecting, on conductivity with non-ferromagnetic metal. These are commonly used in the industries of metallurgy, machinery, electric power, aviation, aerospace, nuclear, military, etc.
Features
- Beautiful appearance, easy to carry, and convenient to grasp, making calibration Wide Measuring
- Covers all nonferrous metal materials
- Advanced design ensures reliable operation and precise measurements
- Equipped with built-in memory capable of storing up to 16,000 sets of measured data
- Excellent design includes lift-off compensation, enhancing measurement precision
- Choose between MS/m or %IACS for flexible measurement
- Simultaneously displays measured results, measuring frequency, measuring time
- Designed with back-light illumination for easy reading in low-light conditions
- Offers three language options for user selection
Technical Specifications
| Working Frequency | 60 kHz |
| Measurement Range for Conductivity | 0.51% IACS to 112% IACS, or 0.3 MS/m to 65 MS/m, or resistivity 0.0154 Ω·mm²/m to 3.3333 Ω·mm²/m |
| Resolving Power | 0.01% IACS (when < 51% IACS)0.1% IACS (from 51% IACS to 112% IACS) |
| Measuring Precision | ±1% reading |
| Lift-off Effect Compensation | 0.0039 in (0.1 mm) |
| Function of Auto Compensation | Measured result of conductivity, adjusting to value at 68 °F (20°C) automatically |
| Normal Working Environment | Temperature from 32 °F to 122 °F (0°C to +50°C); Relative humidity from 0% to 95% |
| Display | Medium-size screen, displaying conductivity, frequency, time |
| Power Supply | Equipped with best performance lithium-ion rechargeable battery |
| Sensor | One sensor of diameter 0.55 lb (249.47 g), working frequency 60 kHz |
| Reading Memory | Can store up to 16,000 groups of measured data |
| Communication with PC Machine | RS232 serial interface |
| Shell of Instrument | Impact-resistance, engineering plastic shell, anti-electric-power rubber shell |

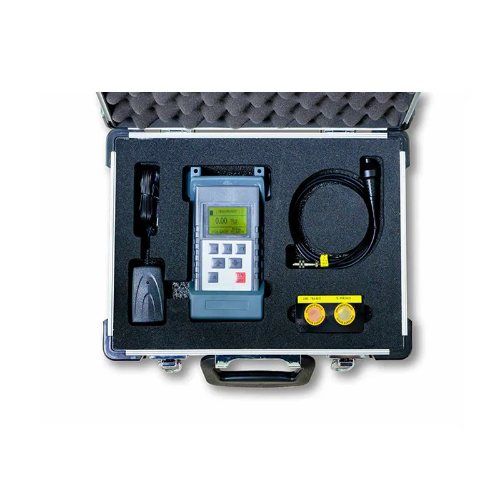

| Package and Protection | High impact-resistance, portable box, includes instrument, sensors, communication cable, operation manual, conductivity standard-blocks, recharger, [U-disk (or optical disk)] |
| Accessories | 2 pieces of standard conductivity blocks (additional blocks available for purchase) |
| Weight of the Host Machine | 0.66 lb (30 g) (including batteries) |
| Dimensions of the Host Machine | 6.6 in x 3.4 in x 1.9 in (170 mm x 88 mm x 50 mm) |
