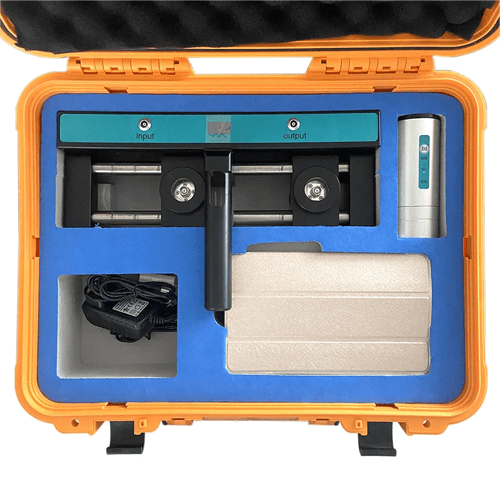

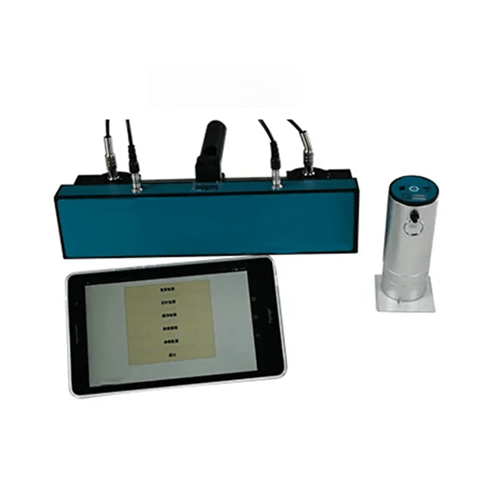

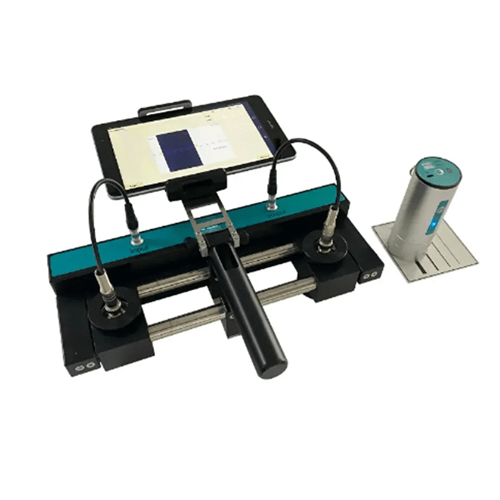

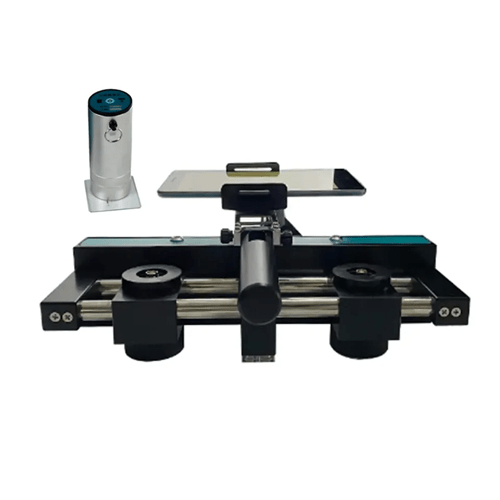

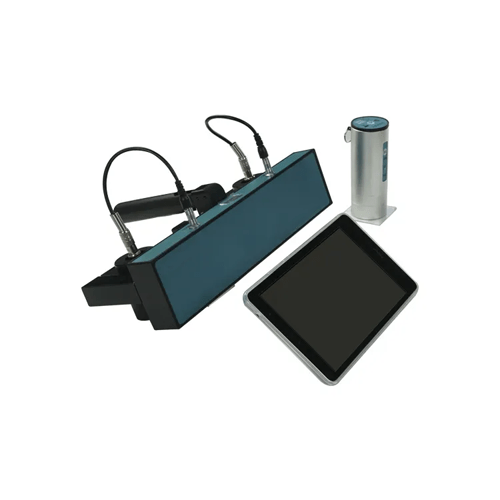

Acoustic Testing Pro Digital Concrete Crack Detector

Acoustic Testing Pro digital concrete crack detector Used for automatic measurement of crack width and crack depth on structural surface, automatic interpretation and storage of data.

SKU: ACTPCKD-185 Category: Crack Detection Tools

Description

Features

Integrated design with small size
Original wireless camera probe
Quick shot button easy to operate
Intelligent interpretation of oblique fractures
No marking of sounding support
Saving time and effort
Tablet and TF cards

Technical Specifications

MCU (Main Control Unit)	8 In Tablet PC Windows
Operating System	32 GB storage
Magnification Times	Digital 60 times
Connection Type	WIFI connection
Measurement Mode	Automatic / manual interpretation
Power Supply Mode	Built in lithium battery
Working Hours	More than 10 hrs
Measurement Accuracy	2% to 10% of actual depth
Operating Mode	Touch screen to probe automatically triggered
Placement	Bluetooth connection
Measurement Mode	Fast / standard measurement
Work Environment	14 °F to 104 °F (-10 ℃ to + 40 ℃)
Test Range	0 in x 0.39 in x 0.03 in (0 mm x 10 mm x 0.01 mm)
Accuracy	0.19 in to 19.68 in (5 to 500 mm)
Package Size	16.53 in x 5.51 in x 13.18 in (420 mm x 140 mm x 335 mm)
