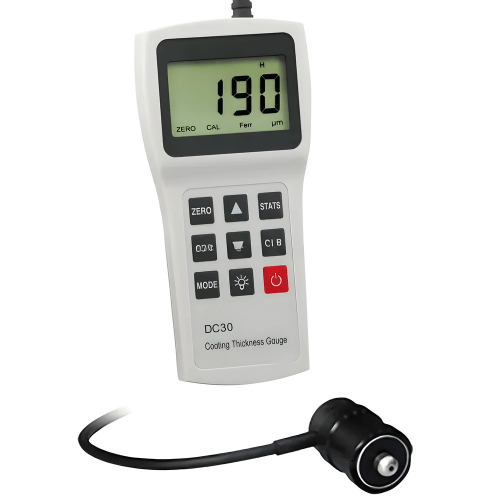

Acoustic Testing Pro Digital Coating/Painting Thickness Gauge
Acoustic Testing Pro digital coating/painting thickness gauge is one of the three models of DC30 series coating thickness gauge, which equips with high class ferrous probe F10, which can measure the coating up to 10000μm, adopting magnetic measuring method to measure the thickness of non-magnetic coatings on magnetic metal substrates.
Overview
Acoustic Testing Pro digital coating/painting thickness gauge is one of the three models of DC30 series coating thickness gauge, which equips with high class ferrous probe F10, which can measure the coating up to 10000μm, adopting magnetic measuring method to measure the thickness of non-magnetic coatings on magnetic metal substrates. Such coatings include paint, plastic film, chromium layer,copper layer, zinc coating, enamel etc.
It is widely used in electronics, power plants, petrochemical industry, aviation, architecture etc.
Features
- Large measuring range of ferrous probe:0-10000μm
- Standard data processing software and USB cable
- Multiple statistics function: measuring times, average, minimum, etc
- High Contrast Segment Liquid Crystal Display (LED Backlight)
- Suitable for both One- and Two-Point Calibration
- Auto off after 3 minutes of inactivity
- Excellent after-sale service system for quality products
Technical Specifications
| Display | High Contrast Segment Liquid Crystal Display (display only figure) (LED Backlight) |
| Statistics Function | Measuring Times, Max, Min, Average, and Standard Deviation |
| Calibration Mode | One point and Two Point |
| Working Temperature | -50 °F to + 122 °F, -68 °F (-10 ℃ to +50 ℃, -20 ℃) in special requirement |
| Auto Power Off | Auto off after 3 minutes of inactivity |
| Power Supply | Two AA size batteries, low-voltage indication function |
| Dimension | 11.81 in x 9.05 in x 3.15 in (300 mm x 230 mm x 80 mm) |
| Packing Weight | 4.40 lb (2 kg) |
