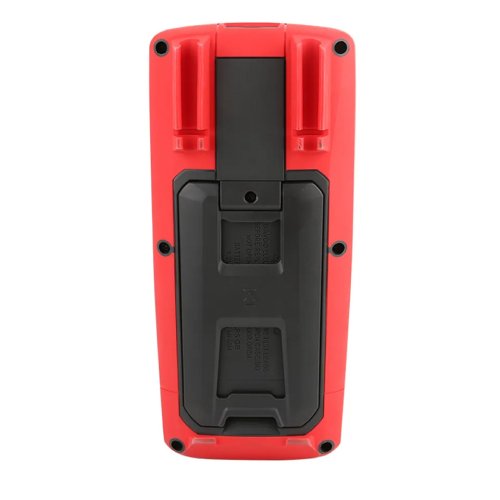

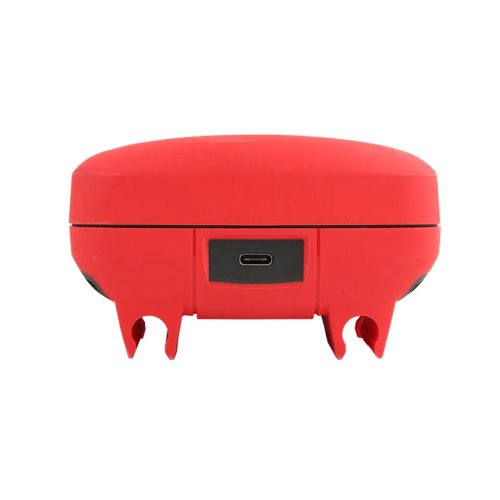

Acoustic Testing Pro Digital Calibrator Multifunction
Acoustic Testing Pro Digital Calibrator Multifunction combines with temperature process calibrator and loop process calibrator function.
Overview
Acoustic Testing Pro Digital Calibrator Multifunction combines with temperature process calibrator and loop process calibrator function. You can easily measure and source most of the process parameter: mA, volts, temperature, frequency, ohms in one tool.
Features
● Contrast adjustment
● Auto power off (Time adjustable)
● Stores and recalls setups
● USB communication
Technical Specifications
| Measurement | ||
| DC voltage (V) | 50 mV/500 mV/50 V | ±(0.02% +2) |
| DC current (mA) | 20mA | ±(0.02% +2) |
| Loop current (mA) | 20mA | ±(0.02% +2) |
| Resistance (Ω) | 500Ω/5000Ω | ±(0.05% +10) |
| Frequency (Hz) | 100 Hz / 1 kHz/ 10 kHz / 100 kHz | ±(0.01% +1) |
| Thermocouples | R, S, K, E, J, T, N, B, L, U, XK, BP | |
| RTDs | Pt100 / Pt200 / Pt500 / Pt1000 / Cu10 / Cu50 / Cu100 / Pt100-392 / Pt100-JIS / Ni120 | |
| Continuity test | √ | |
| Pulses (Hz) | 1 kHz to 15kHz (1 periods to 100000 periods) | |
| DC voltage (V) | 100 mV/1000 mV / 10 V | ± (0.02% +10) |
| DC current (A) | 20 mA/20 mA (SIM) | ± (0.02% +2) |
| Resistance (Ω) | 400 Ω/4000 Ω/40 kΩ | ± (0.05% +10) |
| Frequency (Hz) | 200 Hz/20 00 Hz/20kHz/100 kHz | ± (0.01% +1) |
| Pulses (Hz) | 100 Hz/1 kHz/10 kHz | ±1 |
| Thermocouples | R, S, K, E, J, T, NN, B, L, U, XK, BP | |
| RTDs | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 | |
| Display count | 20000 | |
| Operation temperature | 14 °F to 131 °F (-10 °C to 55 °C) | |
| GENERAL CHARACTERISTICS | ||
| Power | 1.2 V x 6 AA rechargeable battery | |
| Standard accessory | Test lead, USB cable, power adapter, temperature probe, English manual | |
| Product size | 7.68 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) | |
| Product net weight | 1.43 lb (650 g) | |
