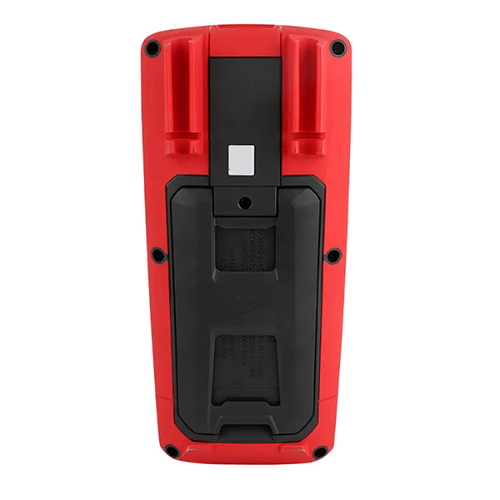

Acoustic Testing Pro DC Voltage Multifunction Loop Process Calibrator
Acoustic Testing Pro DC voltage multifunction loop process calibrator combines with temperature process calibrator and loop process calibrator function.
Overview
Acoustic Testing Pro DC voltage multifunction loop process calibrator combines with temperature process calibrator and loop process calibrator function. You can easily measure and source most of the process parameters, mA, volts, temperature, frequency, and ohms in one tool.
Features
- Step or ramp functions
- Source and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups

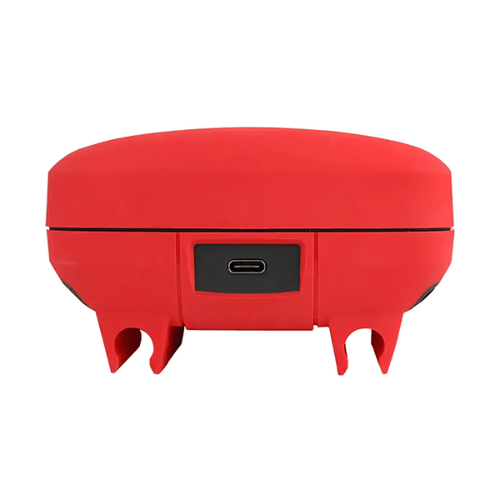

- USB communication
- Simultaneously measure and output different process signal in real time
- Pressure measure with specified pressure modules, and sourcing pressure
- Provides 24 V loop power to transmitter
- mA current measurement
Technical Specifications
| Measurement | DC Voltage | 50 mV or 500 mV or 50 V ± (0.02%+2) | |
| DC current | 20 mA ± (0.02%+2) | ||
| Loop current | 20 mA ± (0.02%+2) | ||
| Resistance | 500 Ω or 5000 Ω ± (0.05%+10) | ||
| Frequency | 100 Hz or 1 kHz or 10 kHz or 100 kHz ± (0.01%+1) | ||
| RTDs | Pt100 or Pt200 or Pt500 or Pt1000 or Cu10 or Cu50 or Cu100 or Pt100-392 or Pt100-JIS or Ni120 | ||
| Pulses | 1 kHz to 15 kHz (1 to 100000 periods) | ||
| Source Accuracy | DC voltage | 100 mV or 1000 mV or 10 V ± (0.02%+10) | |
| DC current | 20 mA or 20 mA (SIM) ± (0.02%+2) | ||
| Resistance | 400 Ω or 4000 Ω or 40 kΩ ± (0.05%+10) | ||
| Frequency | 200 Hz or 2000 Hz or 20 kHz or 100 kHz ± (0.01%+1) | ||
| Pulses | 100 Hz or 1 kHz or 10 kHz ±1 | ||
| RTDs | Pt100-385 or Pt100-392 or Pt100-JIS or Pt200-385 or P500-385 or Pt1000-385 or Cu10 or Cu50 or Cu100 or Ni120 | ||
| Display count | 20000 | ||
| Power | 1.2 V x 6 AA rechargeable battery | ||
| Operation temperature | 14 °F to 131 °F (-10 °C to 55 °C) | ||
| Product size | 7.68 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) | ||
| Product net weight | 1.43 lb (650 g) | ||
