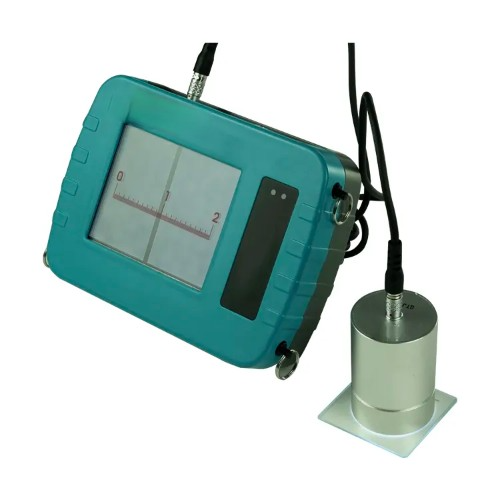

Acoustic Testing Pro Concrete Width Crack Detector
Acoustic Testing Pro concrete width crack detector features crack meters are designed to provide precise measurements of crack widths, allowing engineers and inspectors to monitor crack propagation over time.
Overview
Acoustic Testing Pro concrete width crack detector features crack meters are designed to provide precise measurements of crack widths, allowing engineers and inspectors to monitor crack propagation over time. By monitoring crack widths, they can assess the stability of structures and determine whether further maintenance or repairs are necessary.
Features
- Built-in rechargeable polymer lithium battery greatly extends the working time and service life
- New upgrade, using the three-proof shell design
- Waterproof, dustproof, shockproof
- Imported sensor chip is adopted for high test accuracy
- The host screen has graduated lines for direct reading
- The probe is equipped with night vision function and can be tested in dark environment
Technical Specifications
| Host Parameters | waterproof rating: IP65screen size: 5 in
Liquid crystal resolution: 640 × 480 volume: 7.67 in x 5.51 in x 1.77 in (195 mm x 140 mm x 45 mm) |
| Measurement Range | 0.00039 in to 0.07 in (0.01 mm to 2.00 mm) |
| Reading Accuracy | 0.00019 in (0.005 mm) |
| Magnification Times | 40 times |
| The Minimum Degree | 0.001 in (0.02 mm) |
| Power Supply Mode | built-in lithium battery |
| Operating Ambien Temperature | 14 °F to 104 °F (-10 ℃ to 40 ℃) |
| Line Length | 98.42 in (2.5 m) |
| Weight | 1.76 lb (800 g) |
