Acoustic Testing Pro Concrete Crack Width Detector.

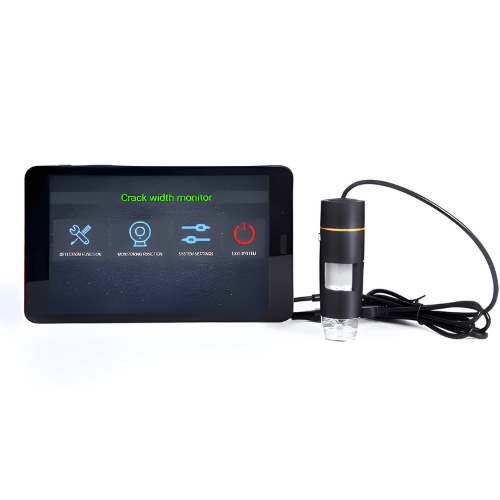

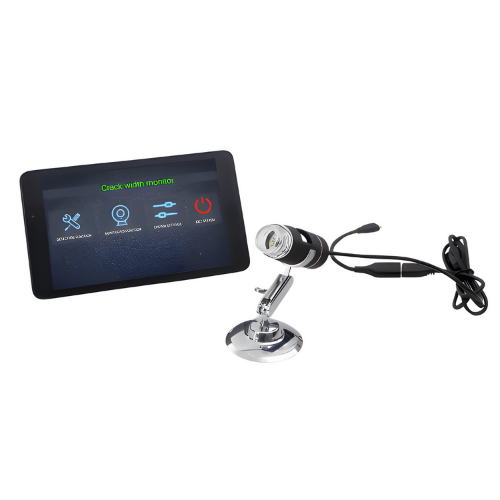

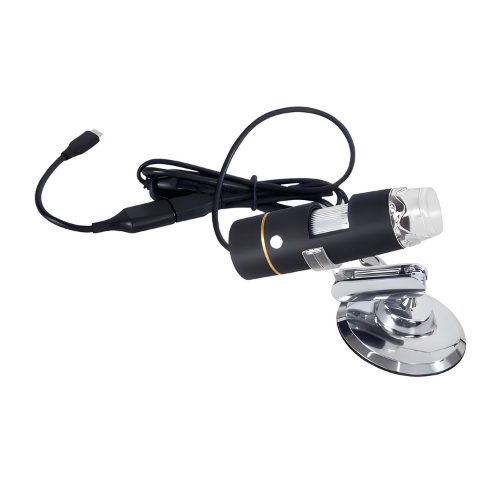

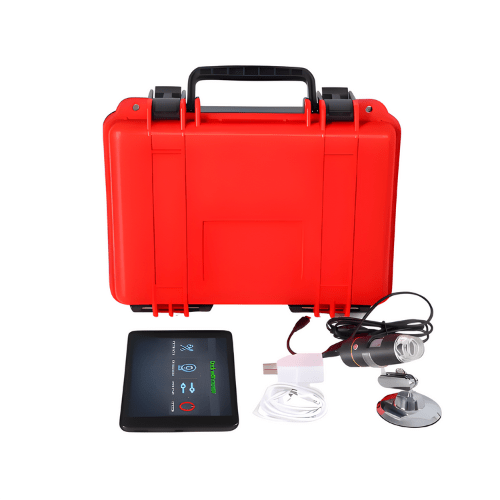

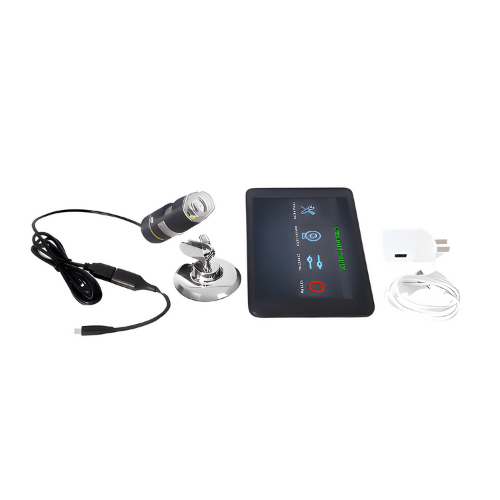

Acoustic Testing Pro concrete crack width detector is a USB flat-panel crack width monitor can conveniently carry out real-time automatic detection of crack width on the surface of different materials and structures, and real-time observation of crack cracking process and long-time real-time automatic monitoring, to realize real-time unattended monitoring and automatic preservation of crack changes.
Overview
Acoustic Testing Pro concrete crack width detector is a USB flat-panel crack width monitor can conveniently carry out real-time automatic detection of crack width on the surface of different materials and structures, and real-time observation of crack cracking process and long-time real-time automatic monitoring, to realize real-time unattended monitoring and automatic preservation of crack changes. In addition to automatic interpretation, Acoustic Testing Pro T-Measurement Concrete Crack Width Detector can also interpret the crack width artificially. After field testing and saving the image data of cracks, the cursor can be moved artificially to define the crack boundary at the viewing interface. The scale is displayed on the screen, showing the crack width value. The crack image and scale can be enlarged and reduced appropriately.
Technical Specifications
| Lenxes Pil | 1000-fold High-Definition Microscope |
| Measurement range | 0.004 in to 1.18 in (0.1 mm to 30 mm) |
| Interpretation accuracy | 0.0004 in (0.01 mm) |
| Detection range | 0.0004 in to 0.2 in (0.01 mm to 5.0 mm) with camera bracket up to 0.39 in (10 mm) |
| Photo resolution | 640 x 480 |
