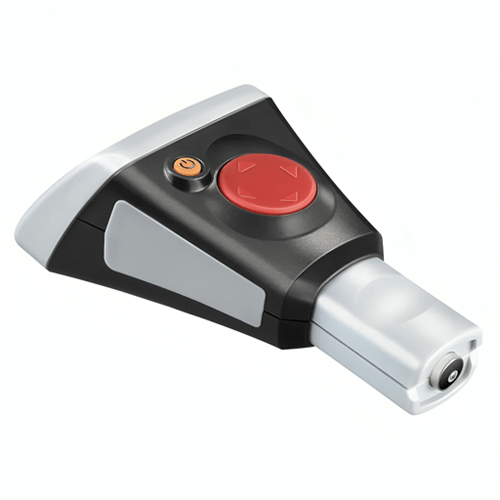

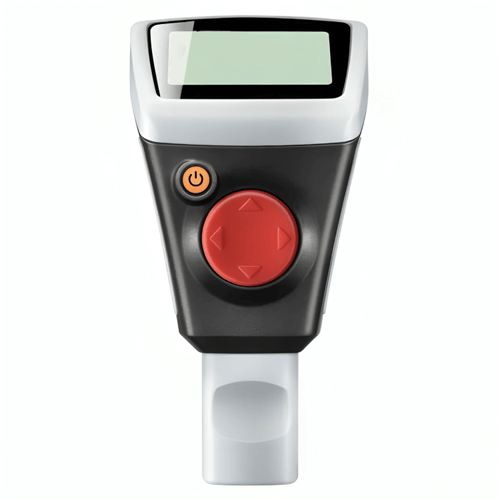

Acoustic Testing Pro Coating Thickness Gauge Meter Tester
This Coating Thickness Gauge Meter Tester has a measuring range of 0 µm to 2000 µm, accuracy of 1% µm to 2% µm, and resolution of 0.1 µm
Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates
- Menu operation system
- Two working modes: DIRECT and GROUP mode
- Statistic Display: AVG, MAX, MIN, NO., S.DEV
- One point calibration, two points calibration and basic calibration easily
- Delete single readings and all group readings easily
- Low battery, error indication
- Memory for 2500 readings (50 GROUP readings)
- 4 levels of battery indication
- Error indication
- Bluetooth interface
- Easily adapt to lighting conditions with 8 levels of backlight
Technical Specifications
| Measuring Range | 0 µm to 2000 µm |
| Accuracy | 1% µm to 2% µm |
| Resolution | 0.1 µm |
| Type | Hand Measuring Tool |
| Size | 4.72 in x 2.36 in x 1.57 in (120mm x 60mm x 40mm) |
| Weight | 0.265 lbs. (120.2 g) |
| Interface | Bluetooth |
| Sensor Probe | F |
| Working Principle | Magnetic induction |
| Measuring Range | 0~2000um |
| Guaranteed Tolerance (of reading) | (+/- 2%+2) um |
| Repeatibility | (+/- 1%+1) um |
| Low Range Precision | 0.1 µm |
| Minimum Curvature Radius | 0.06 in (1.5mm) |
| Diameter of Minimum Area | 0.28 in (7mm) |
| Basic Critical Thickness | 0.02 in (0.5mm) |
