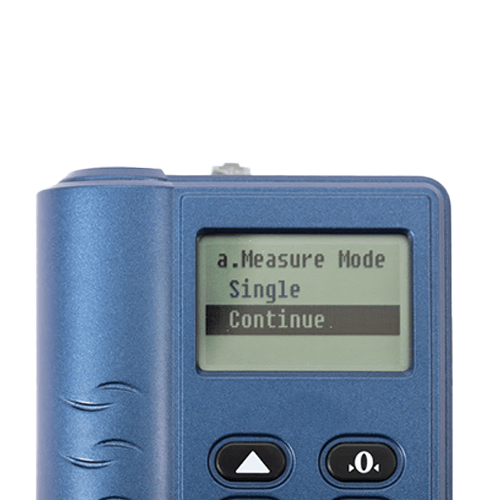

Acoustic Testing Pro Car Paint Thickness Gauge
This Car Paint Thickness Gauge has a power supply of 1.5 V, a measuring range of 0 μm to 1500μm and an operating temperature of 32 °F to 122°F.
Features
- Compact size, integrated probe, magnetic induction method
- Measures non-magnetic coatings on magnetic substrates
- Quick one-hand operation for easy use
- Ready to measure without calibration
- Zero-point correction for accurate results
- One-point calibration for severe changes

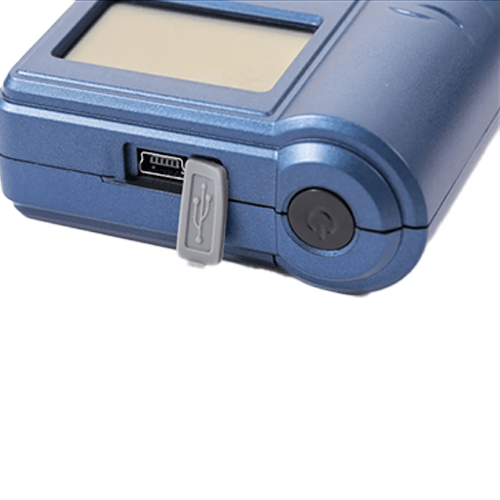

- USB data transfer to PC
- Statistical function for data evaluation
Technical Specifications
| Measuring Range | 0 μm to 1500 μm (0 mil to 60 mil) |
| Accuracy | 0 μm to 100 μm: ± 1.5 μm, 101 to 1500 μm ≤ 1.5 % |
| Graduation | 0 μm to 999 μm: 0.1 μm, ≥1000 μm: 1 μm |
| Power Supply | 1.5 V x (AAA alkaline batteries) |
| Data Memory | Up to 1500 reading |
| Operating temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Dimension | 3.46 in x 2.64 in x 1.18 in (88 mm x 67 mm x 30 mm) |
| Weight | 0.26 lb (120 g) |
