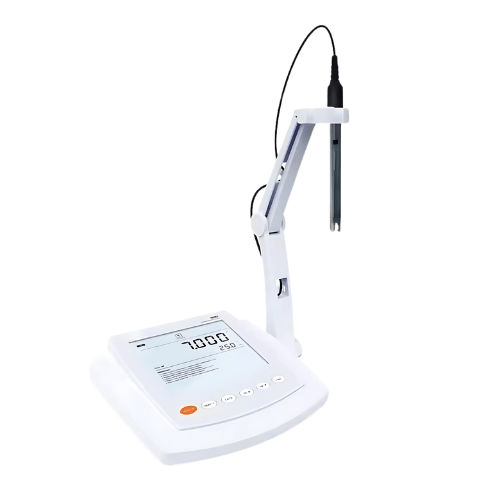

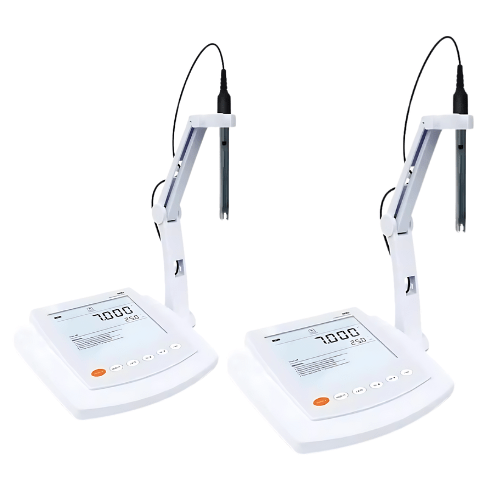

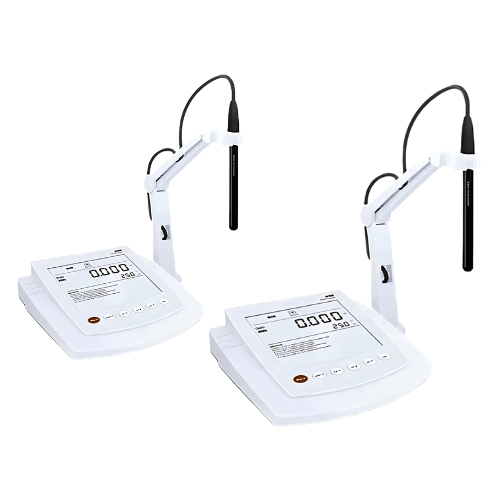

Acoustic Testing Pro Benchtop Automatic Flouride Ion Meter
The Benchtop Automatic Flouride Ion Meter is suitable for laboratory applications, measure range 0.02 ppm to 1900 ppm and,calibration 2 to 5 points.
Features
- Equipped with a large backlit LCD display
- 2 to 5 points calibration, including the selection of 8 concentration points
- Direct ion concentration readout simplifies the measurement process
- Automatic temperature compensation ensures accurate readings over the entire range
- Autoread function senses and locks the measurement endpoint
- Calibration due alarm reminds the user to calibrate the meter regularly
- Automatic electrode diagnosis shows the calibration points and slopes
- Setup menu allows setting the number of calibration points, ionic valency, stability criteria,temperature unit
- Reset function automatically resumes all settings back to the factory defaults
- Expanded memory stores or recalls up to 500 data sets
- USB communication interface for data transfer and timed interval readings.
Technical Specifications
| Range Ion Concentration |
0.02 ppm to 1900 ppm |
| Resolution | 0.001, 0.01, 0.1, 1, automatic |
| Accuracy | ±0.5% F.S |
| Calibration | 2 to 5 points |
| Calibration Solutions | 0.001 or 0.01 or 0.1 or 1 or 10or 100 or 1000 or 10000 |
| Measurement Units | ppm, mg/L, mol/L, mmol/L |
| Range MV |
-1999.9 mV to 1999.9 mV |
| Resolution | 0.1 mV |
| Accuracy | ±0.2 mV |
| Hold Function Other Specifications |
Manual or auto -read measurement endpoint |
| Stability Criteria | Low or high |
| Calibration Due Alarm | 1 day to 31 days or off |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC, 0. 13 in (3.5 mm) jack socket |
| Display | Custom LCD 4.92 in x 3.93 in (125mm × 100 mm) |
| Power Supply | 5 V DC power adapter |
| Environmental Conditions | 0 °C to 50°C or 32 °Fto 122°F, relative humidity <80% |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100°C) manual or automatic |
| Range Temperature |
32 °F to 221 °F (0 °C to 105°C) |
| Resolution | 0.1 °F(0.1°C) |
| Accuracy | (±0.9°F) ± 0.5 °C |
| Calibration | 1 point |
| Calibration Range | Reading 50 °F(±10°C) |
| Dimensions | 8.26 in x 7.40 in x 2.36 in (210 mm x 188 mm x 60 mm) |
| Weight | (3.30 lb) 1.5 kg |
