Acoustic Testing Pro Analyzer Nitrate Ion Meter
Acoustic Testing Pro Analyzer Nitrate Ion Meter NO3 absorbs at 210nm ultraviolet light.
Overview

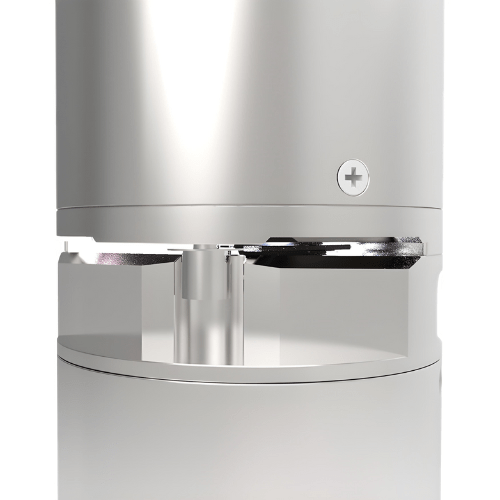

Acoustic Testing Pro Analyzer Nitrate Ion Meter NO3 absorbs at 210nm ultraviolet light. When the probe is working, the water sample flows through the slit. When the light emitted by the light source in the probe passes through the slit, part of the light is absorbed by the sample flowing in the slit, and the other light passes through the sample and reaches the other side of the probe for detection, to calculate the concentration of nitrate.
Technical Specifications
| Measuring Range | 0.1mg per L to 40.0mg per L |
| Accuracy | ±5% |
| Repeatability | ± 2% |
| Resolution | 0.01 mg per L |
| Pressure Range | ≤0.4MPa |
| Sensor Material | Body：SUS316L（freshwater，Titanium alloy Ocean marine；Cable:PUR |
| Communication Protocol | MODBUS RS485 |
| Cable Length | Standard:10M, the maximum may be extended to 100m |
| Power Supply | AC power supply：85 VDC to 500VAC DC power supply：9 VDC to 36VDC |
| Main Material | PA66+GF25+FR(Cover)； Aluminum alloy powder (Lower casing） |
| Output | 3-way 4 mA to 20mA |
| Relay | Three-way relays, programmed response parameters, and response value |
| Communication Protocol | Equipped with MODBUS RS485 communication function, real-time transmission of measured values |
| Protective Rate | IP66 or NEMA4X |
| Storage Temperature | -4°F to 158°F(-20℃ to 70℃) |
| Measuring Temperature | 5 °F to 140 °F(-15℃ to 60℃) |
| Display | 5.0 in x 2.5 in (128 mm x 64 mm)LCD with LED strong backlight, can operate in direct sunlight |
| Dimensions | 5.7 in x 4.9 in x 6.9 in (145mm x 125mm x 162mm) |
| Weight | 2.9 lb (1.35 kg) |
