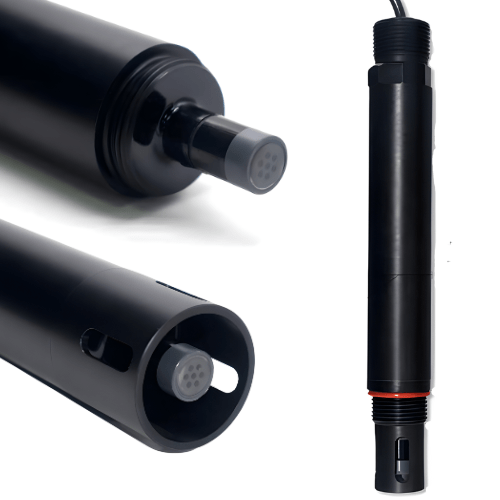

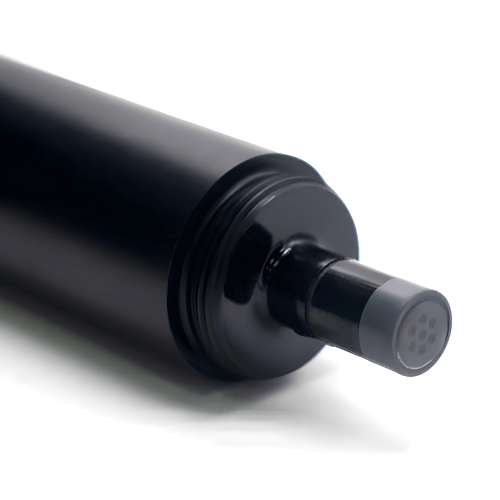

Acoustic Testing Pro Ammonium Ion Sensor

Name: Acoustic Testing Pro Ammonium Ion Sensor - Acoustic Testing Pro
SKU: ACTPWQIM-414

The Ammonium Ion Sensor has a measured range of 0 mg/L to 1000 mg/L, accuracy of ± 2.5 %, resolution of 0.1 mg/L, and 4 mA to 20 mA of output signal.

SKU: ACTPWQIM-414 Category: Ion Analysis Meters

Technical Specifications

Measured Range	0 mg/L to 1000 mg/L (Customisable)
Output Signal	RS485 or 4 mA to 20 mA
Pressure Range	0 MPa to 0.1 MPa
Membrane Resistance	< 500 mΩ
Calibration	Standard liquid calibration
Accuracy	± 2.5 %
Resolution	0.1 mg per L
Connection Method	4 or 6 core canle
Threaded Connection	NPT3 or 4”
Wire Connection	Pin, BNC or customise
Cable Length	32.8 ft (10 m) or customise
Temperature Sensor	NTC10K
Temperature Range	32 °F to 122 °F (0 °C to 50 °C)
