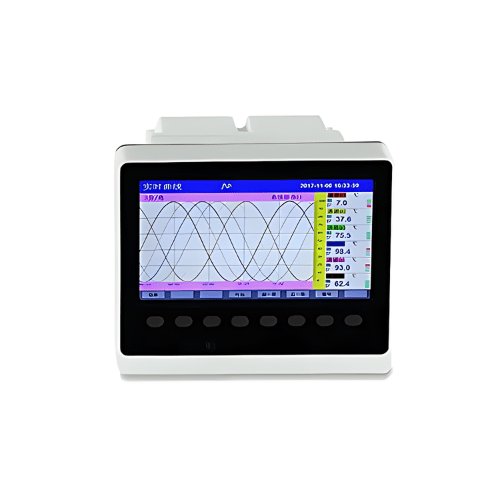

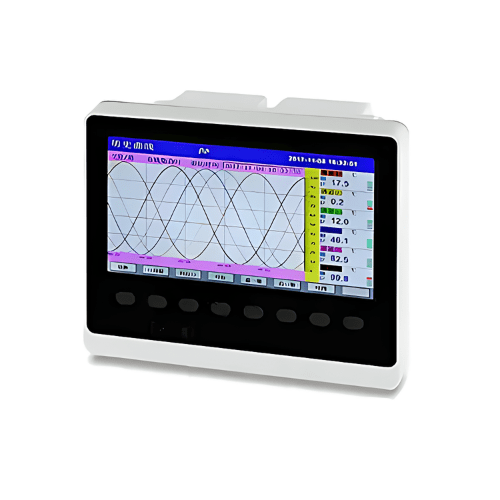

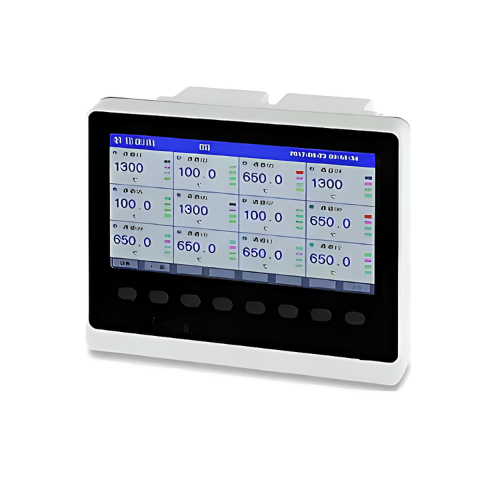

Acoustic Testing Pro Alarm-Enabled Temperature Data Logger

Name: Acoustic Testing Pro Alarm-Enabled Temperature Data Logger - Acoustic Testing Pro
SKU: ACTPAETDLX-107

This Alarm-Enabled Temperature Data Logger has an alarm relay of 250 V AC 3 A, a data memory of 128 Mb and measurement accuracy 0.2% F.S.

SKU: ACTPAETDLX-107 Category: Temperature Loggers

Technical Specifications

Measurement Accuracy	0.2% F.S.
Sampling Period	1 sec
Alarm Relay	6 way open relay , 250 V AC 3 A
Transmit Output	way 4mA to 20 mA transducer output
Power Supply	AC 100 V AC to 240 V AC 50 Hz or DC 24 V DC+10%
Data Memory	128 Mb, 900,000 records
24 V DC Distribution	2 routes 24 V DC (+10%) 30 mA per route
Work Environment	Temperature – 50 °F to 140 °F (10 ℃- 60 ℃) Humidity 0 % RH – 85% RH
Instrument Dimensions	Panel 6.29 in × 3.15 in (160 mm × 80 mm), Opening 5.89 in × 2.99 in (152 mm × 76 mm)
Instrument Weight	15.87 oz (450 g)
