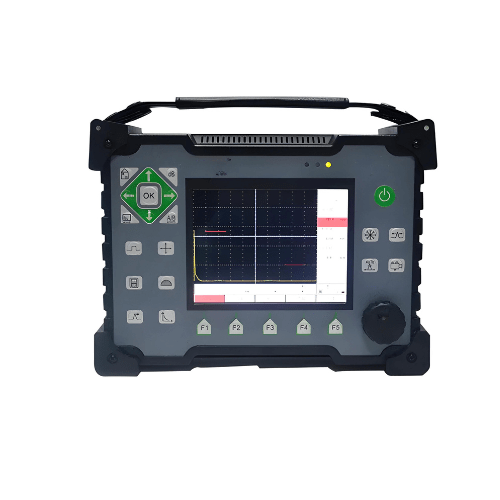

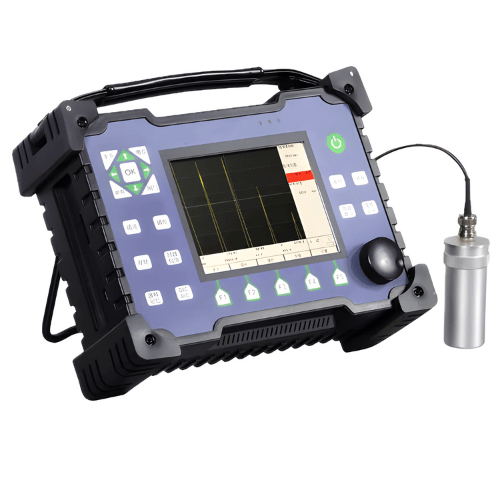

Acoustic Testing Pro Advanced Portable Ultrasonic Thickness Gauge
This advanced portable ultrasonic thickness gauge has power of 110 V, 60 Hz, 220 V, 50 Hz, velocity of 1000 m/s to 9999 m/s and resolution of 40 dB.
Technical Specifications
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Power Supply | 110 V or 60 Hz, 220 V or 50 Hz |
| Working Frequency | 0.5 MHz to 10 MHz |
| Velocity Range | 1000 m/s to 9999 m/s |
| Probe Zero | 0 μs to 199.9 μs |
| Resolution | 40 dB (5P14) |
| RAM | 256 M |
| Detection Range | 0.04 in to 49.21 in (1 mm to 1250 mm) |
| Horizontal Linear Error | 0.1% |
| Repeat Emissivity | 100 Hz to 4000 Hz |
| Thickness Measurement Resolution | 0.004 in (0.1 mm) |
| Screen | Resolution 640 X 480 5.7 TFT Color LCD |
| Size | 8.27 in × 7.87 in × 3.94 in (210 mm x 200 mm x 100 mm) |
| Weight | 4.41 lb (2 Kg) (Including Battery) |
