Ultrasonic Wall Thickness Meter for Metal and Pipe Testing – Acoustic Testing Pro

Overview

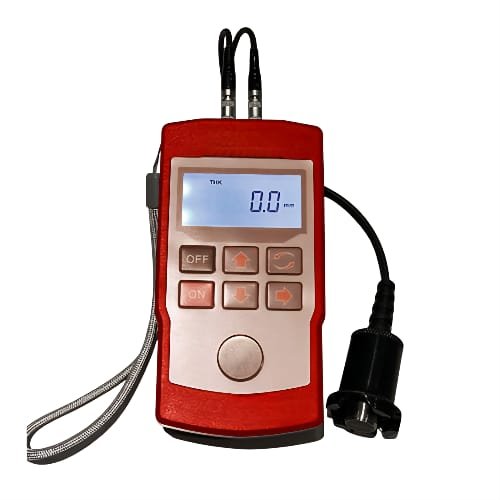

Acoustic Testing Pro Ultrasonic Wall Thickness Meter for Metal and Pipe Testing presents a professional-grade ultrasonic thickness measuring instrument designed to deliver precise measurements for metallic and non-metallic materials, including steel, aluminum, brass, silver, oil, acrylic resin, glycerin, and water glass. This device is equipped with a 4-digit backlit LCD display for easy reading in various lighting conditions and supports multiple probe types, including standard, small-diameter, coarse grain, and high-temperature probes, making it highly versatile for different testing environments. It can measure thickness ranges from 0.7 to 300.0 mm with a resolution of 0.01 mm for 0.8 to 99.99 mm and 0.1 mm for 100 to 300 mm. The device stores up to 400 sets of measurement data, enabling efficient tracking and analysis. Its built-in low-voltage display and automatic shutdown ensure safe and energy-efficient operation, while the coupling indicator helps confirm proper contact between the probe and the test surface. This product comes with a standard probe, PT-5, 5 MHz with a 10 mm diameter, and optional probes XT-5, GT-5, and CT-2.5 for specialized applications. The package includes the main unit, probe holder, built-in calibration block, coupling paste, test certificate, operation manual, and carrying case, providing a ready-to-use solution for field and laboratory applications. The SA40EZ is ideal for industrial quality control, maintenance, pipeline inspections, and laboratory research, offering reliable, high-accuracy measurements for professional users.

Features

• Measures thickness 0.7 to 300 mm with high accuracy
• Suitable for metallic and non-metallic materials
• Supports multiple probes for different applications
• Stores up to 400 measurement sets
• 4-digit backlit LCD for easy reading
• Automatic shutdown and low-voltage display
• Portable with carrying case included

Technical Specifications
