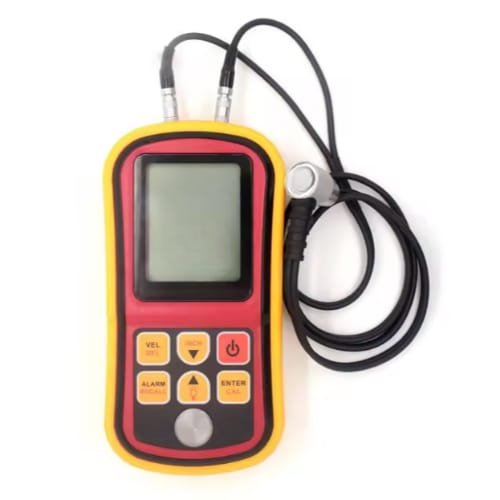

Name: Ultrasonic Thickness Meter Paint Coating Thickness Gauge Meter – Acoustic Testing Pro - Acoustic Testing Pro
SKU: ACTPPSTG-018

Features

Broad Measuring Range – Capable of measuring steel thickness from 1.0 mm up to 300.0 mm.
High Precision – Accuracy rated at ±(1% H + 0.1 mm), where H is the measured thickness.
Fine Resolution – Provides 0.01 mm resolution for 1.00–99.99 mm range, and 0.1 mm resolution for 100–300 mm.
Adjustable Sound Velocity – Sound speed can be set between 1000 to 9999 m/s (12 preset values) for different materials.
User-Friendly Alerts & Storage – Features upper/lower thickness alarms, data storage & recall, coupling status indicator, backlit LCD, low battery alert, and auto shut-down.
Portable Design – Lightweight (~223 g) with dimensions of 72 × 29 × 146 mm; powered by three AAA batteries; operates between 0–40 °C (ambient) with humidity under 90%.

Technical Specifications

Specification	Details
Measurement Principle	Ultrasonic measurement
Measuring Range (Steel)	1.00 mm to 300.0 mm (0.04 in to 11.81 in)
Accuracy	±(1%H + 0.1 mm) (H = measured thickness)
Frequency	5 MHz
Resolution	0.01 mm (1.00–99.99 mm), 0.1 mm (100–300 mm)
Minimum Pipe Diameter (Steel)	15 mm × 2.0 mm (with 6 mm probe); 20 mm × 3.0 mm (with 10 mm probe)
Sound Velocity Range	1000 to 9999 m/s
Sound Velocity Accuracy	≤ 20 mm block: ±1%; ≥ 20 mm: ±5%
Calibration Options	Auto calibration; sound velocity adjustment; block reference
Additional Features	Upper/lower alarm; data storage/deletion; backlit LCD; low battery indicator; automatic shut-down
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F); workpiece < 60 °C; humidity < 90% RH
Power Supply	3 × 1.5 V AAA alkaline batteries (4.5 V total)
Product Weight (without batteries)	223 g (7.87 oz)
Dimensions (L × W × H)	146 mm × 72 mm × 29 mm (5.75 in × 2.83 in × 1.14 in)
