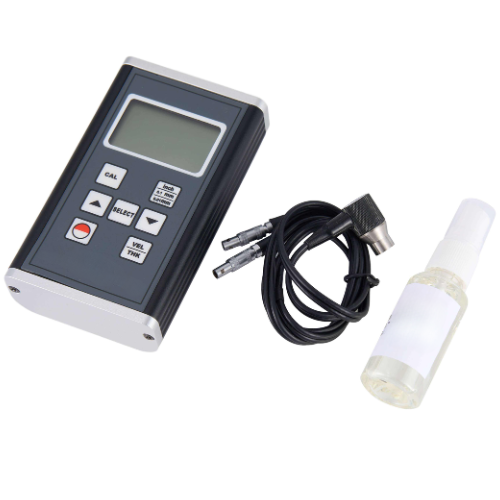

Ultrasonic Thickness Meter for Lab Applications – Acoustic Testing Pro

Overview

Acoustic Testing Pro Ultrasonic Thickness Meter for Lab Applications delivers a high-performance portable ultrasonic thickness meter designed for accurate through-coating measurements in both laboratory and field environments. Built on a low-power microprocessor platform, this device offers fast response and high-resolution measurements down to 0.001 inch, making it highly suitable for precision inspection work. Its stainless-steel housing and compact form factor (5.511 × 2.834 × 1.338 in; 185 g) ensure durability and easy handling during on-site testing. The integrated automatic memory for material codes and sound velocity values significantly reduces setup time, while multiple connectivity options—including USB/RS-232 and optional Bluetooth—provide seamless integration with digital inspection systems. The meter’s wide measurement range (0.0295–15.7480 in) and ability to work on small-diameter pipes make it a versatile solution for non-destructive testing across various industrial applications. OEM customization is also available, making it ideal for organizations seeking tailored solutions for large-scale deployment.

Features

• High-performance, low-power microprocessor technology for efficient operation
• Automatic material code and sound-velocity memory for faster measurement setup
• USB/RS-232 connectivity for seamless data transfer to PC
• Optional Bluetooth output for wireless data logging
• Broad measuring range (0.0295 in to 15.7480 in)
• High resolution up to 0.001 inch and accuracy of ± (0.5%n + 0.0039 in)
• Suitable for pipes with small diameters

Technical Specifications
