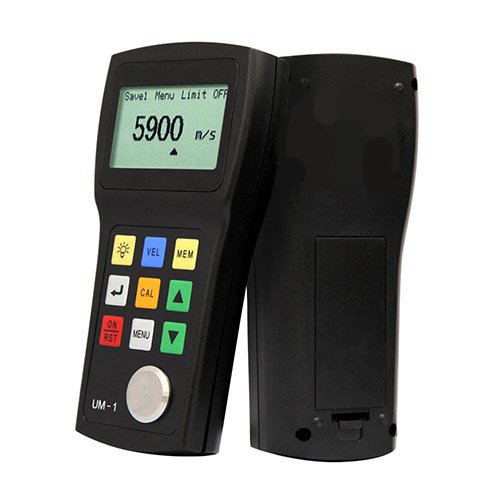

Ultrasonic Thickness Gauge with Through – Paint Measurement – Acoustic Testing Pro

Overview

Acoustic Testing Pro Ultrasonic Thickness Gauge with Through-Paint Measurement is a non-destructive testing device designed to measure the thickness of metals and coated materials accurately. It features a wide measuring range of 0.03 in to 11.81 in (0.8 mm to 300 mm) with a high resolution of 0.001 in (0.01 mm). Its clear 128×64 dot-matrix LCD display ensures easy readability, while its compact, lightweight design allows convenient field inspections. This instrument is widely used in industries such as shipbuilding, automotive, aerospace, and pipeline inspection where accurate wall thickness measurement through coatings is essential.

Features

•  Wide measuring range: 0.03 in to 11.81 in (0.8 mm to 300 mm)
•  High resolution: 0.001 in (0.01 mm) and accuracy of 0.004 in (0.1 mm)
•  Measures thickness through coatings, paint, or foil layers
•  Clear 128×64 dot-matrix LCD display for easy reading
•  Compact and lightweight design (7.41 oz / 210 g) for portability
•  Ideal for metal, aluminum foil, coated materials, and industrial structures

Technical Specifications
