Temperature Data Logger with Printer for Cold Chain and Refrigeration – Acoustic Testing Pro

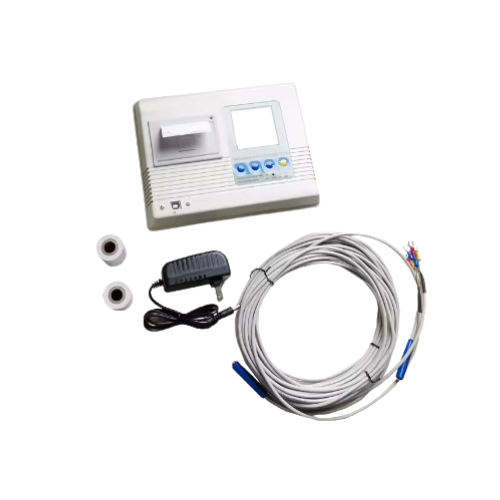

ACTP Temperature data logger designed for cold chain and refrigeration.
Overview
ACTP Temperature data logger designed for cold chain and refrigeration. This product records -22 °F to 158 °F (-30 °C to 70 °C), prints data from 14 °F to 122 °F (-10 °C to 50 °C), and stores data at -40 °F to 185 °F (-40 °C to 85 °C). It features a high-precision NTC sensor with ±0.18 °F (±0.1 °C) accuracy and operates in 10% to 85% RH. Powered by 9–18 VDC, this device ensures precise and reliable indoor temperature monitoring with customizable logo and packaging options.
Features
- Measures and records temperatures from -30℃ to 70℃.
- Can print recorded data in the range of -10℃ to 50℃.
- StoCan store data in the range of -40℃ to 85℃.
- Operates in 10%RH to 85%RH (non-condensing).
- Uses NTC (10K-25℃) temperature sensor.
- Works with 9–18VDC, nominal 12VDC.
- 86–106 KPa, suitable for indoor environmental monitoring.
- ±0.5℃, suitable for precise temperature monitoring.
- Designed for cold chain transportation and refrigeration monitoring.
- Comes with a 3-year warranty.
Technical Specifications
| Specification | Details |
| Recording Temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Printing Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storing Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidity | 10%RH to 85%RH (non-condensing) |
| Ambient Pressure | 86 to 106 KPa |
| Sensor Type | NTC (10K at 25 °C) |
| Power Supply | 9 to 18 VDC, nominal 12 VDC |
| Temperature Control Accuracy | ±0.18 °F (±0.1 °C) |
| Resolution | 0.18 °F (0.1 °C) |
