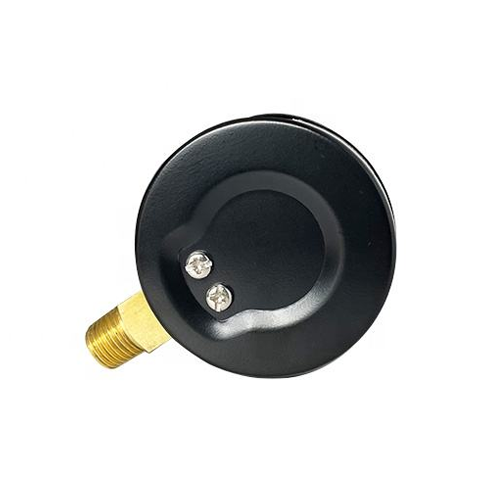

Radial Bottom Connection Pressure Gauge Manometer – Acoustic Testing Pro

Overview

Acoustic Testing Pro Radial Bottom Connection Pressure Gauge Manometer is a durable and precision-engineered instrument designed for accurate measurement of pressure in various industrial and mechanical applications. This product features a black steel case with a stainless-steel radial bottom or back connection, providing both strength and corrosion resistance for long-term use in demanding environments. It operates effectively within a temperature range of -22 °F to 140 °F (-30 °C to +60 °C), ensuring reliable performance in diverse conditions. This device uses a Bourdon tube mechanism for precise readings and can be filled with glycerin or silicone oil to dampen vibrations, making it ideal for hydraulic, pneumatic, and mechanical systems.

Features

• Built with a durable black steel case and stainless-steel connection for long-lasting performance.
• Offers high accuracy options of ±1%, ±1.6%, or ±2.5% for precise pressure monitoring.
• Customizable pressure range to suit various system and operational needs.
• Operates reliably from -22 °F to 140 °F (-30 °C to +60 °C).
• Supports multiple connection sizes—1/8″, 1/4″, 3/8″, 1/2″—with PT, BSP, and NPT threads.
• Can be filled with glycerin or silicone oil for shock and vibration protection.
• Features a clear, durable glass or plastic window for excellent dial visibility.
• Available in standard sizes: 2.5 in (63 mm), 4 in (100 mm), and 6 in (150 mm).
