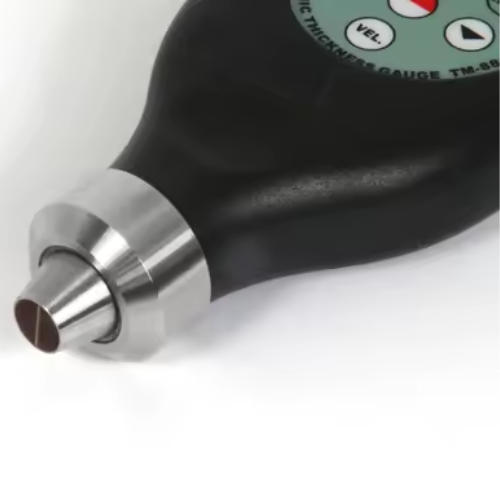

Portable Ultrasonic Pipe Thickness Gauge for Steel – Acoustic Testing Pro
Acoustic Testing Pro portable ultrasonic pipe thickness gauge for Steel is designed for accurate non-destructive inspection of pressure vessels, chemical equipment, boilers and storage tanks in industries such as petroleum, shipbuilding, power generation and mechanical manufacturing.
Overview
Acoustic Testing Pro portable ultrasonic pipe thickness gauge for Steel is designed for accurate non-destructive inspection of pressure vessels, chemical equipment, boilers and storage tanks in industries such as petroleum, shipbuilding, power generation and mechanical manufacturing. Built with a high-performance microprocessor, it delivers precise steel wall-thickness measurements from 0.04–8 in with minimal power consumption.Automatic material-code memory, a built-in probe and an included calibration block make it easy to deploy right out of the box. For data management and reporting, the unit provides both USB and RS-232 connectivity, with Bluetooth available as an option. A lightweight body (120 g without batteries) and compact size make it ideal for field inspection teams requiring reliable corrosion monitoring.
Features
- High-performance, low-power microprocessor for fast and accurate thickness measurement
- Measures 0.04–8in thickness in steel, suitable for corrosion and wall-loss inspection
- Automatic memory for material code and sound-velocity values for quick setup
- Built-in probe and calibration block included for immediate use
- Multiple data transfer options: USB, RS-232 and optional Bluetooth
- Low battery indication and easy-to-read 4-digit LCD display
- Supports small-diameter pipes
- Lightweight and compact for portable, on-site measurements
- OEM customization available
Technical Specifications
| Display | 4-digit LCD (10 mm height) |
| Operating Principle | Ultrasonic |
| Measuring Range | 0.04 in to 8 in (1 mm to 200 mm) |
| Resolution | 0.00039 in (0.01 mm) |
| Accuracy | ± (0.5%n + 0.1in) |
| Sound Velocity Range | 1000 m/s – 9000 m/s |
| Lower Limit — Steel Pipes | Φ0.7874 in × 0.1181 in (20 mm × 3 mm) |
| Calibration Block | Included |
| Battery Indication | Low Battery |
| Power Supply | 4 × 1.5 V AAA (UM-4) |
| Connectivity | USB / RS-232 (BT optional) |
| Standard Accessories | Main unit, calibration block, coupling agent, carrying case, operating manual |
| Optional Accessories | USB/RS-232 cable with software; Bluetooth module with software |
| Dimensions | 5.315 in × 2.559 in × 1.063 in (135 mm × 65 mm × 27 mm) |
| Weight | 4.23 oz (0.26 lb) (without batteries) |
