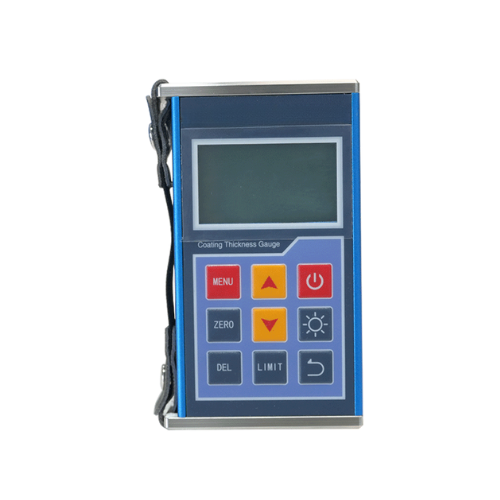

Portable LCD Display Digital Film Thickness Coating for Car Paint – Acoustic Testing Pro
A compact, dual-function coating thickness gauge featuring both magnetic induction and eddy current measurement modes. With a 128×64 backlit LCD, high resolution, and multi-record memory, it’s ideal for accurate coating inspection on both ferrous and non-ferrous substrates in automotive and industrial applications.
Features
- Dual Mode: Magnetic & eddy-current, FE/NFE compatible
- Wide Range: 0–1250 µm coating thickness
- Accurate & Precise: 0.1 µm resolution, ±(2%H + 1 µm) accuracy
- Bright Display: Backlit 128×64 LCD
- Memory Function: 5 files × 100 values
- Travel-Friendly: Lightweight (340 g), compact size, plus 2-year warranty and customization available
Technical Specifications
| Specification | Details |
| Measurement Range | 0 to 1250 µm; up to 0.39 in (10 mm) with special probe F10 |
| Measurement Principle | Magnetic induction and eddy current |
| Substrates Supported | Ferrous (FE) and Non-Ferrous (NFE) materials |
| Resolution | 0.1 µm or 0.01 mil |
| Accuracy | ±2%H + 1 µm |
| Display | 128 × 64 LCD with backlight |
| Memory Capacity | 5 files × 100 readings |
| Power Supply | 2 × AA batteries |
| Operating Temperature | 14 °F to 122 °F (–10 °C to +50 °C) |
| Storage Temperature | –22 °F to 158 °F (–30 °C to +70 °C) |
| Product Weight | 11.99 oz (340 g) |
| Dimensions (L × W × H) | 4.53 in × 2.64 in × 1.22 in (115 mm × 67 mm × 31 mm) |
