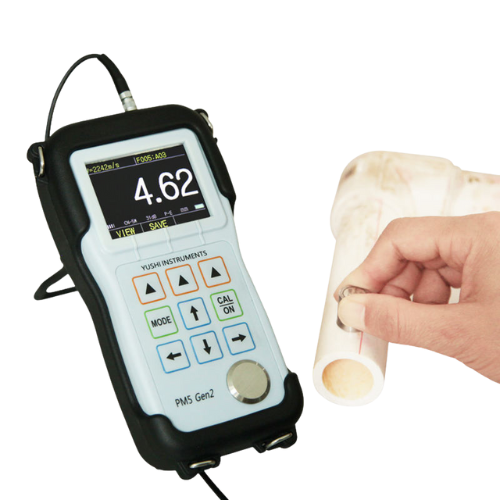

Portable High Precision Thin Parts Plastic Bottle Ultrasonic Wall Thickness Gauge with High Frequency Probe – Acoustic Testing Pro
Portable ultrasonic wall thickness gauge with ultra-high accuracy (0.001 mm), 2.4-inch color TFT display, designed for thin plastic materials such as bottles.
Features
- High Accuracy – Precision up to ±0.001 mm.
- Wide Range – Measures 0.15–30 mm (steel) and up to 38 m (materials).
- Clear Display – 2.4″ TFT color LCD.
- Probe Options – Supports delay line, contact, protective film, immersion, etc.
- Durable Use – Works from −10 ℃ to 50 ℃.
- Portable Design – Lightweight, powered by 2×AA batteries.
Technical Specifications
| Specification | Details |
| Accuracy | 0.001 mm |
| Material | ABS |
| Resolution Options | 0.001 mm or 0.01 mm or 0.1 mm |
| Display | 2.4 in TFT color LCD, 320×240 resolution |
| Probe Types | Delay line, contact, protective film, pen-type, water immersion, high-temperature |
| Measuring Range | 0.00039 in to 124.67 ft (0.01 mm to 38 m), Standard probe D15A: 0.0059 in to 1.18 in (0.15 mm to 30 mm) in steel |
| Operating Temperature | 14 °F to 122 °F (–10 °C to +50 °C) |
| Weight | 81.13 oz (2300 g) |
| Size | Not specified |
