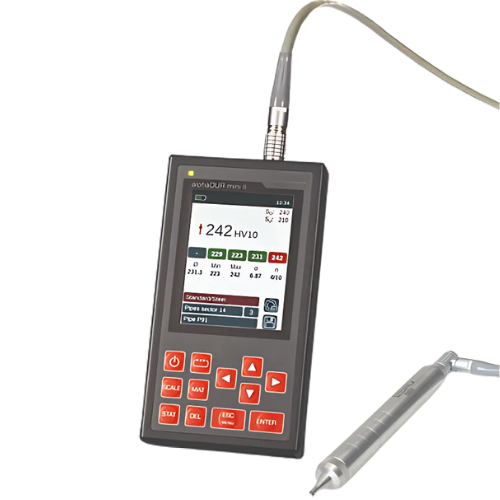

Portable Hardness Tester for Metals, Coatings, and Weld Seams – Acoustic Testing Pro
Overview
Acoustic Testing Pro’s portable hardness tester for metals, coatings, and weld seams is designed for easy operation with a large LCD display that shows all relevant information. Hardness scales and materials can be quickly adjusted with special keys. Using the UCI (Ultrasonic Contact Impedance) measuring method, it provides fast and accurate measurements, regardless of direction. The measured value appears immediately after the test load is applied. It offers versatility for various applications and sample surfaces.
Features
- Low power consumption
- Fast and easy hardness testing
- Robust metal casing
- Large color display
- Built-in Lithium-Ion battery
- Extensive storage and statistical functions
- USB-C interface for data transfer to PC and USB flash drive
Technical Specifications
| Measuring Method | UCI (Ultrasonic Contact Impedance) |
| Test Load | 3, 10, 20, 30, 49 or 98 N, depending on the UCI probe (HV 0.3 to HV 10) |
| Testing Materials | Preferably metals and material calibrations can be saved in the device. Measurements on glass, ceramic and plastic are possible if comparison measurements for calibration are done |
| Minimum Thickness for Steel | Approx. 0.20 in (5 mm) |
| Measuring Range | Approx. 10 HV to 3000 HV |
| Hardness Scales | Vickers (HV), Brinell (HB), Rockwell (HRC, HRB, HRA, HRD, HRE, HRF), Super Rockwell (HR45N), Knoop (HK), tensile strength (N/mm²) |
| Uncertainty of Measurement | < 2 % |
| Display | 3.5 in TFT-LCD color display (640 x 480 pixels) |
| Memory | 2 GB RAM, 8 GB eMMC-Flash-Memory (> 1,000,000 measurements) |
| Interfaces | USB-C (charging and data transfer), CAN bus, Bluetooth 5.0 BLE |
| Data Transfer | Direct protocol printout with mini thermal printer, data transfer to USB flash drive and PC |
| Operating Temperature Range | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature Range | -4 °F to 140 °F (-20 °C to 60 °C) |
| Battery | Built-in Lithium-Ion battery, 6800 mAh (Approx. 10 h operating time) |
| Weight (Device) | 0.95 lb (430 g) |
| Weight (Probe) | 0.42 lb (190 g) |
| Dimensions (Device) | 6.06 in x 3.31 in x 0.91 in (154 mm x 84 mm x 23 mm) |
| Dimensions (Probe) | 0.77 in Ø, length 6.89 in (Ø 19.5 mm, length 175 mm) |
