Portable Handheld Ultrasonic Flowmeter for Water &Amp; Oil Measurement – Acoustic Testing Pro
Portable handheld ultrasonic flowmeter for accurate water & oil measurement, compatible with multiple pipe types and sizes.
Features
- Portable handheld design for easy use
- Measures water, oil, and other liquids accurately
- Supports pipe sizes DN15mm–6000mm
- Works with steel, stainless steel, cast iron, copper, PVC, and aluminum pipes
- Multiple power options: DC, AC, or battery
- Outputs: 4-20mA, pulse, relay, RS485, RS232
- Data storage via SD card or internal memory
- Ultrasonic measurement principle for high precision

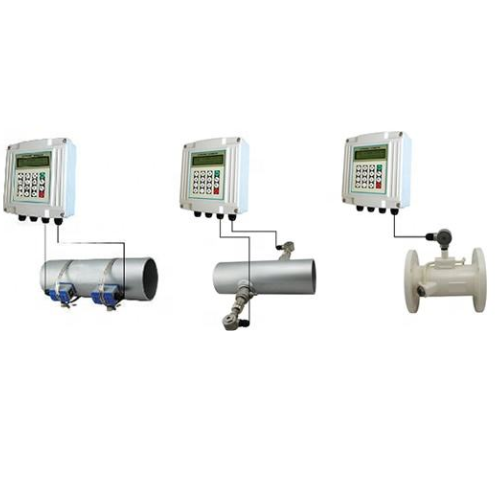

- Clamp-on, plug-in insertion, or inline pipe types
- Wide temperature range: -30°C to 160°C
Technical Specification
| Parameter | Specification |
| Host Part | Theory: Ultrasonic time gap Accuracy: ±1%
Display: 4 x 8 or 4 x 16 Character matrix backlight LCD, supports English, Italian, Chinese Signal Output: 1 channel pulse output OCT (pulse width adjustable 6 to 1000 ms, 200 ms default) |
| Suit Pipe | Pipe Material: Steel, cast iron, cement, copper, PVC, aluminum, glass, etc. Inner DN: 1.26 in to 236.22 in (32 mm to 6000 mm) |
| Suit Flow | Media: Single liquid that can transmit sound waves (water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids)
Temperature: -22°F to 320°F (-30°C to 160°C) |
| Environment | Host Temperature: -4°F to 140°F (-20°C to 60°C) Sensor Temperature: -22°F to 320°F (-30°C to 160°C) Humidity: Host 85% RH; Flow Sensor IP67 |
| Dimensions & Weight | Host Weight: 13.8 oz (390 g) Size / Dimension: [Not specified] |
