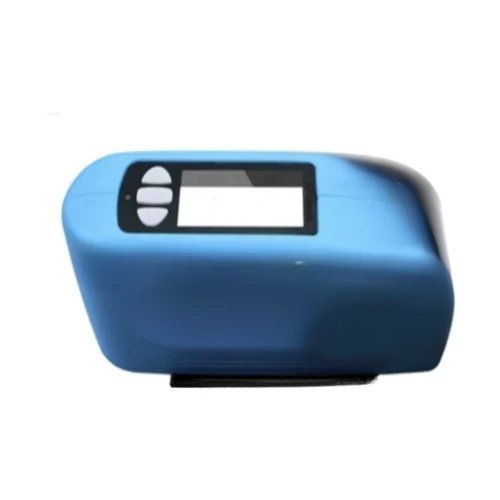

Portable Gloss Meter for Marble and Coatings Testing – Acoustic Testing Pro
Acoustic Testing Pro Portable Gloss Meter for Marble, Paint, and Coatings Testing this device is a high-precision, compact gloss meter designed for accurate surface gloss measurement on a wide range of materials, including coatings, printing ink, paint, wood, marble, granite, polishing bricks, pottery, porcelain, plastic, paper, metals, and other non-metallic surfaces.
Overview
Acoustic Testing Pro Portable Gloss Meter for Marble, Paint, and Coatings Testing .This device is a high-precision, compact gloss meter designed for accurate surface gloss measurement on a wide range of materials, including coatings, printing ink, paint, wood, marble, granite, polishing bricks, pottery, porcelain, plastic, paper, metals, and other non-metallic surfaces. It adopts a long-life light source, providing stable performance, excellent repeatability, and reliable results. This product features a user-friendly interface with one-button measurement, manual standard sample input, and a clear data browsing system. It can store up to 10,000 records, supports USB communication for PC connection, and allows extended functionality through dedicated software. The device operates at a measuring angle of 60° with a spot size of 9×15 mm, a measuring range of 0–1000 GU, and high repeatability for consistent accuracy. With automatic shutdown, low power warning, and robust design, this device is ideal for both field and laboratory use, ensuring precise gloss testing with minimal effort.
Features
- One-Button Measurement
- High Precision & Stability
- Wide Application Range
- Data Storage & Management
- USB Connectivity
- Humanized Interface
- Automatic Functions
- Customizable Standards
- Compact & Portable
- Durable Design
Technical Specifications
| Single Gloss Meter | Triangle Gloss Meter | |
| Measuring Angle (°) | 60° | 20°, 60°, 85° |
| Measuring Range (GU) | 60°: 0 GU to 1000 GU | 20°: 0 GU to 2000 GU 60°: 0 GU to 1000 GU 85°: 0 GU to 160 GU |
| Measuring Spot (in) | 60°: 0.35 in × 0.59 in (9mm × 15mm) | 20°: 0.39 in × 0.39 in (10 mm × 10 mm) 60°: 0.35 in × 0.59 in (9 mm × 15 mm) 85°: 0.20 in × 0.71 in (5 mm × 18 mm) |
| Division Value (GU) | 0 GU to 1000 GU: 0.11000 GU to 2000 GU: 1 | 0 GU to 1000 GU: 0.11000 GU to 2000 GU: 1 |
| Repeatability (GU) | 0 GU to 100 GU: 0.2>100: 0.2% | 0 GU to 100 GU: 0.2>100: 0.2% |
| Indication Error (GU) | ±1.5 | ±1.5 |
| Zero Error (GU) | 0.2 | 0.2 |
| Working Temperature (℃) | 50 °F to 104 °F (10 ℃ to 40 ℃) | 50 °F to 104 °F (10 ℃ to 40 ℃) |
| Storage Temperature (℃) | 14 °F to 158 °F (-10 ℃ to 70 ℃) | 14 °F to 158 °F (-10 ℃ to 70 ℃) |
| Humidity Range | Relative humidity < 85%, no condensation | Relative humidity < 85%, no condensation |
| Power Adapter | 2×5 alkaline batteries / power adapter | 2×5 alkaline batteries / power adapter |
| Volume (in) | 6.26 in × 1.93 in × 2.83 in (159 mm × 49 mm × 72 mm) | 6.26 in × 1.93 in × 2.83 in (159 mm × 49 mm × 72 mm) |
| Weight (oz) | 17.64 oz (500g) | 17.64 oz (500g) |
