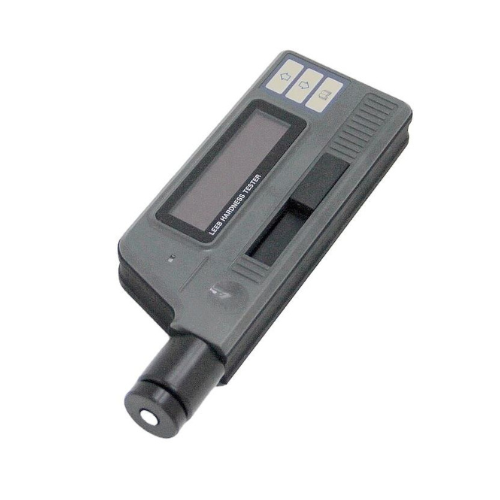

Portable Digital Metal Hardness Tester – Acoustic Testing Pro
Acoustic Testing Pro Portable Digital Metal Hardness Tester supports multiple hardness scales (HL, HB, HRB, HRC, HRA, HV, HS), measures within a 170–960 HLD range, and features a dot‑matrix LCD.
Overview
Acoustic Testing Pro Portable Digital Metal Hardness Tester supports multiple hardness scales (HL, HB, HRB, HRC, HRA, HV, HS), measures within a 170–960 HLD range, and features a dot‑matrix LCD. This device offers 360° measuring without complex setups and retains up to 500 test results. It can interface via USB, ideal for rapid, portable metal hardness assessments
Features
- Compatible with hardness scales: HL, HB, HRB, HRC, HRA, HV, HS
- Wide measuring range: 170–960 HLD
- Dot‑matrix 128×64 LCD display for clear readings
- Stores up to 500 test results for easy recall
- USB 1.1 interface for seamless data transfer
- Comes with a 1-year warranty and OEM support
Technical Specifications
| Measuring Range | 170 HLD to 960 HLD |
| Hardness Scales | HL, HB, HRB, HRC, HRA, HV, HS |
| Display | 128 × 64 dot-matrix LCD |
| Data Memory | 500 groups (relative to 32 to 1 impacts) |
| Measuring Direction | 360° |
| Interface | USB 1.1 |
| Power /Charger | 9V/500mA (battery charger) |
