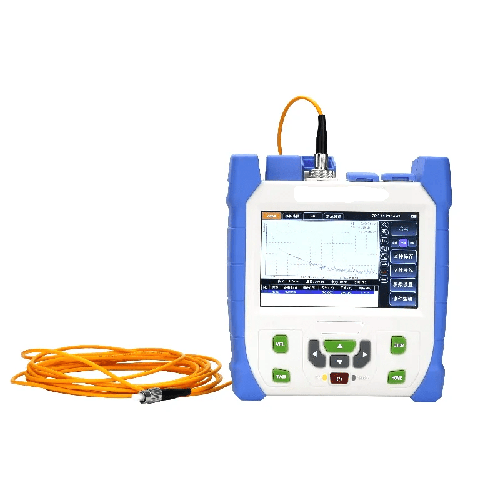

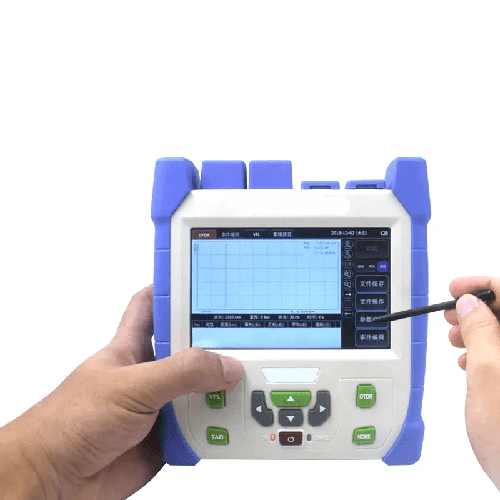

Name: OTDR with VFL 5-Inch Touch Screen and 15 Hour Battery - Acoustic Testing Pro - Acoustic Testing Pro
SKU: ACTPOPM-1174

Overview

Acoustic Testing Pro OTDR with VFL and OPM is stable and durable, aiming at measuring broadcast and telecommunication networks. Integrated with a visible fault locating system for the convenience of the detection point in the optical network. Users can remotely access this instrument by network cable or USB wire.

Features

5 in touch screen, handheld OTDR
support VFL and optical power meter
Support Event Map
Automatic data storage SOR Batch processing remote upgrade function
Support Stabilizing light source function
15 hours long battery life
Line with light detection, automatic alarm with light
Standard SoR file output format
Button and touch screen dual operation mode

Technical Specifications

Fiber Type	G.652
Wavelength	1310 nm ± 20 nm, 1550 nm ± 20 nm
Dynamic Range	28 dB, 26 dB, 22 dB
Event Blind Zone	4.92 ft (1.5 m)
ATT Blind Zone	26.24 ft (8 m)
Test Range	0.31 mi, 0.62 mi, 1.24 mi, 2.49 mi, 4.97 mi, 9.94 mi, 19.89 mi, 39.79 mi, 79.59 mi(500 m, 1 km, 2 km, 4 km, 8 km, 16 km, 32 km, 64 km, 128 km)
Pulse Width	5 ns to 6.21 mi (5 ns to 10000 m)
Ranging Accuracy	± (29.52 in (0.75 m) + Sample interval + 0.005 % × Test distance)
Loss Accuracy	± 0.5 dB
Sampling Points	16,000 to 128,000
Sampling Resolution	0.18 ft to 629.92 ft (0.056 m to 192 m)
Reflection Accuracy	± 9.84 ft (± 3 m)
File Format	SOR standard file format
Loss Analysis	4-point method or 5-point method
Laser Safety Level	Class I
Data Storage	Internal: 21000; External: 4 G bit

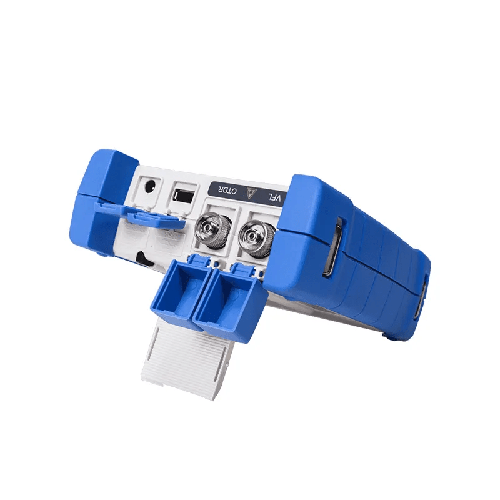

Connector	FC or UPC (Interchangeable SC,ST)
Refresh Rate	3 Hz
Data Interface	USB
VFL Wavelength	650 nm ± 20 nm
VFL Output Power	≥ 10 mW
Mode	CW, 1 Hz, 2 Hz
VFL Connector	FC or SC or ST
Display	3.5 in color LCD + Touch Screen
Power Supply	AC or DC Adapter: Input: 212 °F to 66.2 °F (100 °C to 19 °C)
Output	12 V to 19 V, 1.5 A
Li-Battery	7.4 V, 5200 mAh
Size	6.50 in x 6.10 in x 2.28 in (16.5 cm x 15.5 cm x 5.8 cm)
Weight	2.20 lb (1 kg)
