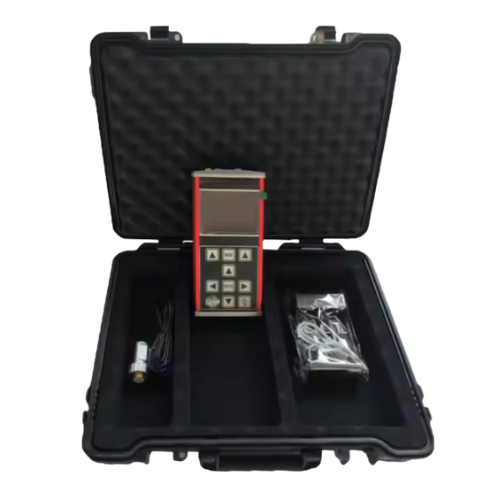

Non-Metallic Ultrasonic Thickness Gauge – Acoustic Testing Pro
Acoustic Testing Pro Non-Metallic Ultrasonic Thickness Gauge is a high-precision device designed for accurate measurement of coating thickness across various substrates, including metal, glass, plastic, composite, concrete, and wood.
Overview
Acoustic Testing Pro Non-Metallic Ultrasonic Thickness Gauge is a high-precision device designed for accurate measurement of coating thickness across various substrates, including metal, glass, plastic, composite, concrete, and wood. This product uses pulsed reflection ultrasonic technology, making it ideal for ultra-thin film materials and coatings that allow ultrasonic wave propagation at a constant speed. With a resolution as high as 0.001 mm and a wide measuring range from 20 µm to 1800 mm, it ensures reliable results in demanding applications. This device supports multiple display modes such as A-scan, B-scan, and numerical display, along with advanced functions like through-coating measurement, echo-to-echo measurement, and multi-layer thickness detection of up to 10 layers simultaneously. It is highly versatile, suitable for industries such as petroleum, chemical, metallurgy, shipbuilding, aerospace, and energy. Equipped with various calibration methods, energy-saving features, and compatibility with multiple probe types (including high-frequency probes up to 20 MHz), this product offers exceptional performance. It also supports large data storage capacity, allowing users to store up to 100,000 thickness values along with A-scan and B-scan waveforms. Its intuitive interface, dual-language support, and unit conversion between millimeters and inches make it a user-friendly and powerful solution for precision thickness measurement.
Features
- Wide Measuring Range
- High Resolution
- Multi-Mode Display
- Through-Coating & Echo-to-Echo Measurement
- Multi-Layer Detection
- Versatile Measurement Modes
- Data Storage Capacity
- Probe Compatibility
- Flexible Calibration Options
- User-Friendly Interface
Technical Specifications
| Coating Range | 20 μm |
| Minimum Measuring Thickness | 0.00079 in (0.02 mm) |
| Maximum Measuring Thickness | 70.87 in (1800mm) |
| Resolution | 0.000039 in (0.001 mm) |
| Repeatability | ±0.000079 in (±0.002 mm) |
| Display Modes | A-scan, B-scan, Numerical display |
| Measurement Modes | THIN, MB-E, E-E, Auto, THIN E-E |
| Functions | Through-coating measurement, Echo-to-echo, Multi-layer detection (up to 10 layers) |
| Numerical Modes | Conventional thickness, Difference/Reduction rate, Maximum value |
| Gain Modes | Automatic gain / Manual gain |
| Calibration Methods | One-point, Multi-point, Manual, Sound velocity, Probe zero, V-path |
| Probe Compatibility | Twin probes, Single crystal probes, High-frequency probes up to 20 MHz |
| Data Storage Capacity | 100,000 thickness values, 500 A-scan waveforms, 500 B-scan waveforms |
| Applications | Petroleum, Chemical, Metallurgy, Shipbuilding, Aerospace, Energy industries |
| Units | Millimeters (mm) / Inches (in) |
| Power Supply | 3 pcs No. 5 lithium-ion batteries |
| Energy-Saving | Manual and automatic shutdown |
| Material | Metal case |
| Dimensions | 7.24 in × 3.35 in × 1.26 in (184 mm × 85 mm × 32 mm) |
