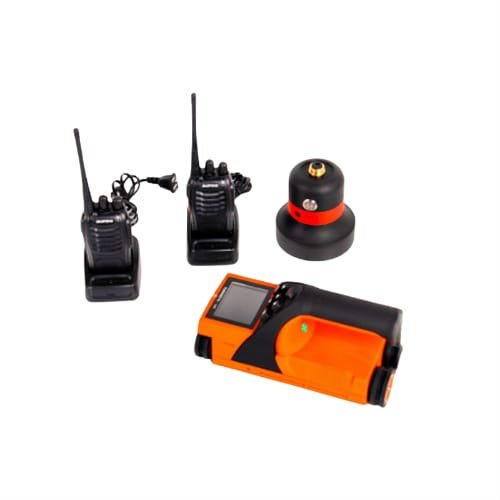

Non – Destructive Floor Thickness Gauge Measurement – Acoustic Testing Pro
Acoustic Testing Pro Non-Destructive Floor Thickness Gauge Measurement is a high-precision instrument designed for non-destructive testing of concrete structures and other non-ferromagnetic materials.
Overview
Acoustic Testing Pro Non-Destructive Floor Thickness Gauge Measurement is a high-precision instrument designed for non-destructive testing of concrete structures and other non-ferromagnetic materials. This device accurately measures the thickness of floors, walls, beams, columns, wood, and ceramics, providing real-time positioning and thickness readings. It features a 2.8-inch high-resolution color LCD for clear indoor and outdoor visibility, integrated probe and host design for portability, and advanced data management with storage of up to 200,000 measurement points. The device supports USB data transfer, easy calibration, and telescopic rod adjustments for flexible operation, ensuring fast, reliable, and efficient measurements for construction and inspection projects.
Features
- Measures non-ferromagnetic materials: concrete, wood, ceramics.
- Real-time probe positioning with direction indication.
- Automatically locks and displays true thickness values.
- 8-inch high-resolution color LCD for clear readings.
- Integrated probe and host design, lightweight and portable.
- Stores up to 200,000 measurement points with USB transfer.
- Telescopic rod with 360° adjustable double universal joints.
- Optional calibration test block for precise measurements.
Technical Specifications
| Test Thickness Range | 20 mm to 999 mm |
| Measurement Mode | Ordinary thickness inspection to Compensated thickness detection |
| Testing Accuracy | 20 to 200 mm: ±1 mm 201 to 400 mm: ±2 mm 401 to 600 mm: ±3 mm 601 to 999 mm: ±6 mm |
| Data Storage Capacity | 200,000 measuring points |
| Display Resolution | 320 x 240 |
| Data Transfer Mode | USB |
| Power Supply Time | Host: Not less than 26 h Probe: Not less than 64 h |
| Temperature Range | -4 °F to 104 °F (-20 °C to 40 °C) |
| Weight (Only Product) | Host: 1.54 lb (700 g) Transmitting probe: 1.10 lb (500 g) Telescopic rod: 0.88 lb (400 g) |
| Size | Host: 8.62 in x 3.62 in x 4.17 in (219 mm x 92 mm x 106 mm) Transmitting probe: Ø3.94 in x 4.33 in (Ø100 mm x 110 mm) Telescopic rod: Ø1.10 in x 61.8 in (Ø28 mm x 470 mm + 0.5 m) |
