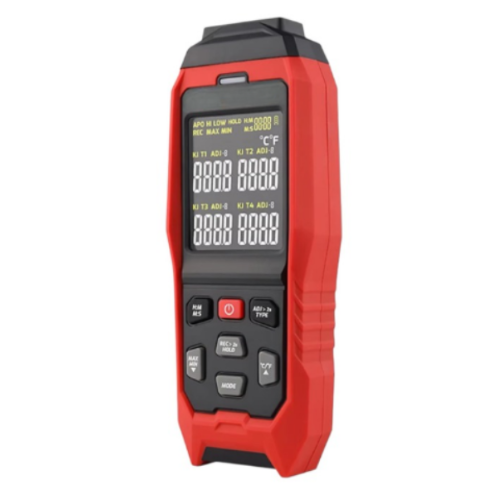

Multi-Channel K/J Thermometer with Data Logger – Acoustic Testing Pro

Acoustic Testing Pro’s multi-channel K/J thermometer with data logger is widely used in industrial temperature measurement for its versatility and precision.

SKU: ACTPTDL-212 Category:

Overview

Acoustic Testing Pro’s multi-channel K/J thermometer with data logger is widely used in industrial temperature measurement for its versatility and precision. It can directly measure surface temperatures of liquids, vapors, gaseous media, and solids across various production processes. This product is designed to handle extreme environments, making it suitable for high-temperature applications such as furnaces and ovens in steelmaking and coke production. Additionally, it is capable of accurately measuring low-temperature substances, including liquid hydrogen and liquid nitrogen. Equipped with multiple channels, this device allows simultaneous temperature monitoring, improving efficiency and data collection in complex processes. The integrated data logger ensures that temperature readings are recorded and stored for analysis, enabling better process control and traceability. Its robust construction and precise measurement capabilities make this product a reliable solution for industrial environments where accurate and continuous temperature monitoring is critical.



Technical Specifications

Type  Four Channel
Range (K-type)  -328°F to +2501°F (-200°C to +1372°C)
Range (J-type)  -328°F to +2192°F (-200°C to +1200°C)
Accuracy  ± [0.2% + 1.3°F (0.7°C)]
Resolution  0.1°C/°F (-99.9 to +999.9°C/°F); 1°C/°F (-200 to -100°C/°F, ±1000°C/°F)
Upper Limit Alarm  Default: 2372°F (1300°C)
Lower Limit Alarm  Default: -328°F (-200°C)
ADI Compensation  -9 to +9°C/°F (Probe error range compensation)
PC Connection (USB)  Supported
Data Logger  5000 groups; Only thermocouple data (no ambient)
Ambient Temp. Range  32°F to 140°F (0°C to 60°C)
Ambient Temp. Accuracy  ±3.6°F (±2°C)
Recording Interval  H:M/M:S
Sampling Rate  1 time per second
Auto Power Off  15 minutes (can be disabled)
Working Environment  14°F to 122°F (-10°C to 50°C), max 80% RH, indoor altitude [< 6562 ft (2000m)]
Storage Environment  14°F to 122°F (-10°C to 50°C), max 70% RH (battery removed)
Product Size  7.0 in x 2.8 in x 1.4 in (177 mm x 70 mm x 35 mm)
Weight  Approx. 0.416 lb (189g) (battery not included)
Power  3 x AA batteries / USB micro interface 5V
K-type Probe  (4 pcs); -58°F to 572°F (-50°C to 300°C), ±2.7°F (±1.5%)
