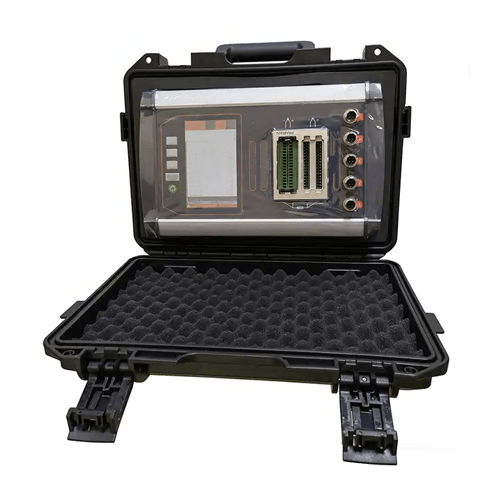

Moisture Probe Temperature & Humidity Data Logger
This Moisture Probe Temp. & Humidity Datalogger has 5 humidity channels, RS 232 communication method, and electrical technology index of 70 mV, 400 Ω.
Features
- 0.1 Sec, Channel Inspection Speed
- Sensor Correction Function
- Professional Thermocouple Reference Terminal Processing
- Channel Detection Function
- Optional Dry and Wet Bulb Method to Measure Humidity
- Channel Expansion Function
- Built-in Storage Function
- Removable Large Capacity Lithium Battery
- Wireless Communication Function
- Rich Human-Computer Interaction Functions
- Support Panran Smart Metering
Technical Specifications
| Equipment Type | Temperature and Humidity Field Inspection Instrument |
| Communication Method | RS 232 |
| Battery Duration | 15 H |
| Connector Way | Dedicated Connector |
| Number of Thermocouple Channels | 32 |
| Number of Thermal Resistance Channels | 16 |
| Number of Humidity Channels | 5 |
| Additional Channel Expansion | 40 Thermocouple Channels, 8 Thermal Resistance Channels, 3 Humidity Channels |
| Electrical technology index | 70 mV, 400 Ω |
| Preheat Time | Effective after Ten Minutes of Warm-up |
| Calibration Cycle | One Year |
| Working Environment | Operating Temperature -41 °F to 113 °F (-5 ℃ to 45 ℃), Working Humidity 0% to 80%, non-condensing |
| Volume | 12.08 in x 7.28 in x 2.24 in (307 mm x 185 mm x 57 mm) |
| Weight | 2.64 lb. (1.2 kg) (Without Charger) |
