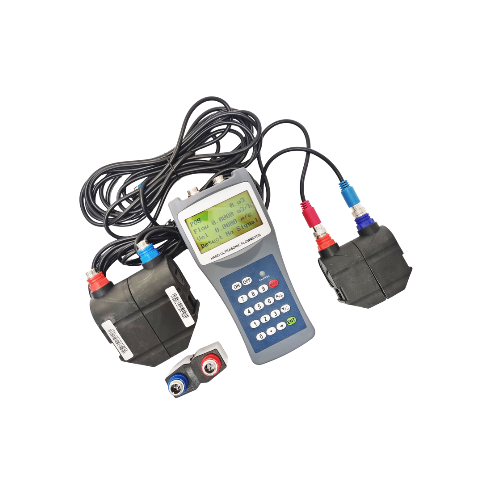

IP68 Handheld Ultrasonic Flow Meter Battery Powered with High Accuracy – Acoustic Testing Pro
Accurate IP68 handheld ultrasonic flow meter with RS232/RS485, data logger, and easy clamp-on installation
Features
- Easy clamp-on installation outside the pipeline
- High accuracy: ±1% with 2% repeatability
- Wide pipe range: DN15–DN6000mm
- Data logger: Stores over 2000 lines of data
- RS232/RS485 interfaces for networking and data export
- Portable design with rechargeable batteries (12+ hours use)
- Durable ABS housing with IP68 protection
- Works with multiple pipe materials (iron, steel, PVC, PE, )
Technical Specification
| Parameter | Specification |
| Principle | Transit-time measurement principle |
| Suitable Diameter | DN15 to DN6000mm |
| Linearity | 0.5% |
| Accuracy | ±1% |
| Repeatability | 0.2% |
| LCD Display | 4 x 8 Chinese characters or 4 x 16 English letters |
| Data Interface | RS232 or RS485, used for networking to detect or export recorded data |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Signal Line | Standard: 16.40 ft x 2 (5 m x 2) / Optional: 32.81 ft x 2 (10 m x 2) |
| Power | 3 AAA Ni-H built-in batteries (works continuously for more than 12 hours). |
| Housing Material | ABS |
| Medium Temperature | ≤ 230 °F (≤ 110 °C) |
