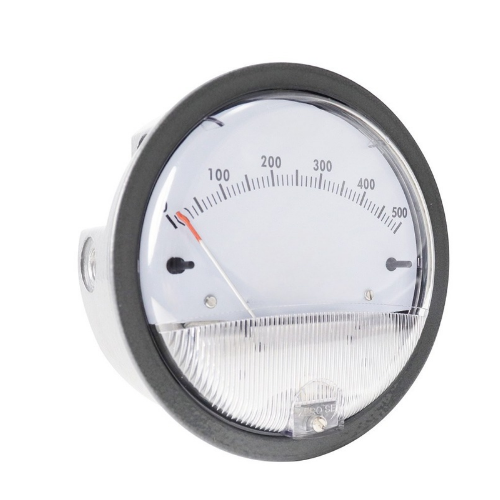

Industrial Differential Pressure Manometer – Acoustic Testing Pro

Overview

Acoustic Testing Pro presents this Industrial Mechanical Differential Pressure Manometer, a precise and reliable device designed to measure differential pressure in HVAC systems, cleanrooms, and various industrial applications. It utilizes a magnetic spiral movement and a rubber diaphragm as the sensitive element, allowing accurate pressure readings for positive, negative, or differential pressure. This device features shock resistance, anti-shaking capabilities, and overpressure protection, ensuring stable and durable performance. It requires no liquid filling, eliminating issues such as gasification, freezing, or odor. It is widely applicable for measuring fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice differential pressure, air bubble water level, hydraulic system pressure, and liquid amplification. Additionally, it can be used in air-gas ratio monitoring, automatic valve control in combustion processes, and healthcare equipment for monitoring blood pressure and respiratory pressure.

Features

• It uses a magnetic spiral movement and rubber diaphragm, ensuring accurate and reliable differential pressure measurements.
• The device is shock-resistant, anti-shaking, and overpressure-proof, providing long-lasting durability.
• No liquid filling is required, avoiding issues such as gasification, freezing, or odor.
• The pointer movement is precise, with no inertia, drift, or hysteresis, for consistent readings.
• It can measure positive, negative, or differential pressure across multiple ranges, from 0 ~ 30Pa up to 0 ~ 210KPa.
• Two sets of pressure ports (side and back) and three mounting modes offer flexible installation options.
• It is suitable for a wide range of applications, including HVAC systems, cleanrooms, fans and blowers, filters, wind speed measurement, furnace pressure, hydraulic systems, and liquid amplification.
• It can also be used for air-gas ratio monitoring, automatic valve control in combustion processes, and healthcare applications like blood pressure and respiratory pressure monitoring.
• It operates reliably in environmental temperatures from -7°C to 80°C and can withstand rated pressures from -68 ~ 103KPa.
• The device provides excellent accuracy and reasonable pricing for industrial and commercial applications.

Technical Specifications
