High – Resolution Thickness Gauge for Corrosion Testing – Acoustic Testing Pro
Acoustic Testing Pro High-Resolution Thickness Gauge for Corrosion Testing is a precision instrument designed to measure the thickness and detect corrosion in a wide range of materials.
Overview
Acoustic Testing Pro High-Resolution Thickness Gauge for Corrosion Testing is a precision instrument designed to measure the thickness and detect corrosion in a wide range of materials. This product is ideal for assessing boilers, oil storage tanks, pipelines, slabs, forgings, hulls, and other machined parts. It employs advanced ultrasonic technology to provide fast and accurate measurements, making it suitable for use in industries such as petrochemical, shipbuilding, automotive, power generation, and manufacturing. This device supports both single-point and scanning modes, ensuring flexibility for different testing conditions. It offers high-resolution readings down to 0.001 inch, allowing detailed evaluation of thin and corroded surfaces. Equipped with a clear backlit LCD display, multiple measurement units, and memory storage for recorded data, it enhances usability during field inspections and quality control processes. The product also includes USB or RS-232 connectivity for easy data transfer and analysis, streamlining industrial testing workflows.
Features
- High-resolution measurement up to 0.001 inch for precise results
- Dual modes: Pulse-Echo and Echo-Echo for versatile testing
- Single-point and scanning modes for flexible applications
- Backlit LCD display for clear readings in any environment
- Memory storage for multiple measurement files
- USB/RS-232 interface for quick data transfer and analysis
- Lightweight, portable design for on-site inspections
Technical Specifications
| Measurement Range | 0.03 in to 23.62 in (0.65 mm to 600 mm) in Pulse-Echo mode; 0.12 to 2.36 in (3 to 60 mm) in Echo-Echo mode |
| Resolution | 0.004 in or 0.0004 in or 0.001 in (0.1 mm or 0.01 mm or 0.001 in) |
| Accuracy | ±(0.5% n + 0.002 in) (±(0.5% n + 0.05 mm)), depending on material and conditions |
| Sound Velocity Range | 3,281 ft/s to 32,805 ft/s (1000 m/s to 9999 m/s) |
| Measurement Speed | 4 times per second (single-point mode); 10 times per second (scan mode) |
| Display | LCD with backlight |
| Memory | Up to 20 files, 99 values per file |

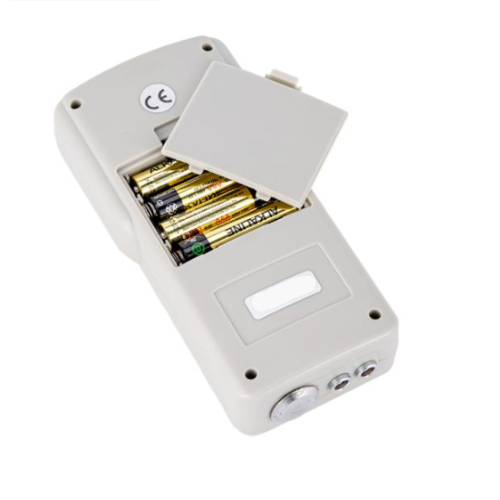

| Power Supply | 4 x 1.5V AAA batteries |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Humidity | <85% RH |
| Weight | 6.17 oz (175 g, excluding batteries) |
| Dimensions | 5.59 in x 2.83 in x 1.34 in (142 mm x 72 mm x 34 mm) |
