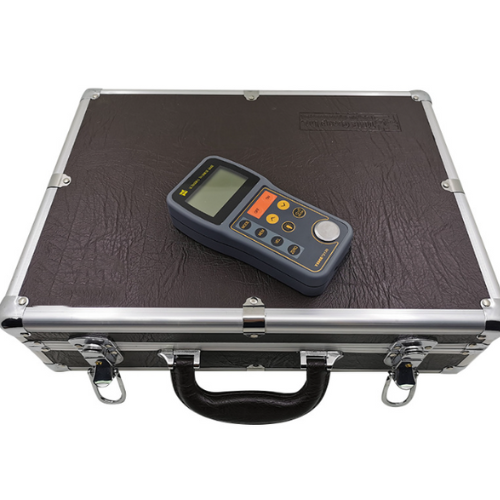

High Precision Ultrasonic Thickness Gauge – Acoustic Testing Pro
Acoustic Testing Pro High-Precision Ultrasonic Thickness Gauge is a reliable and versatile device designed to measure the thickness of metals, cast iron, and other solid materials with accuracy and efficiency.
Overview
Acoustic Testing Pro High-Precision Ultrasonic Thickness Gauge is a reliable and versatile device designed to measure the thickness of metals, cast iron, and other solid materials with accuracy and efficiency. With a wide measuring range and advanced ultrasonic technology, it delivers precise results for industrial inspection, maintenance, and quality control. The handheld design, easy-to-read display,and durable construction make it suitable for use in factories, construction, shipbuilding, and pipeline monitoring applications.
Features
- Wide measuring range from 0.05 in to 11.81 in (1.2 mm to 300 mm)
- Specialized range for cast iron: 0.20 in to 1.57 in (5.0 mm to 40.0 mm)
- High measuring accuracy: ±(1%H + 0.004 in) [H = thickness of tested piece]
- User-friendly operation with quick response time
- Portable handheld design for on-site inspections
- Suitable for metals, cast iron, pipelines, vessels, and structural components
Technical Specifications
| Measuring Range | 0.05 in to 11.81 in (1.2 mm to 300 mm) |
| Measuring Range for Cast Iron | 0.20 in to 1.57 in (5.0 mm to 40.0 mm) |
| Measuring Accuracy | ±(1%H + 0.004 in) (H = thickness of tested piece) |
| Power Supply | Electronic (battery operated) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Weight | Approx. 15.87 oz |
| Dimensions | 6.3 in x 2.95 in x 1.18 in (16 cm x 7.5 cm x 3 cm) |
