High Precision Liquid Bath Temperature Calibrator -40 to 105℃ – Acoustic Testing Pro
Liquid bath temperature calibrator with wide -40℃ to 105℃ range, 0.001℃ resolution, and superior stability for precise industrial calibration.
Overview

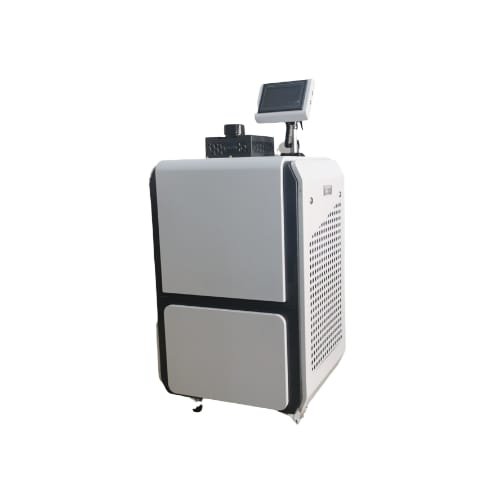

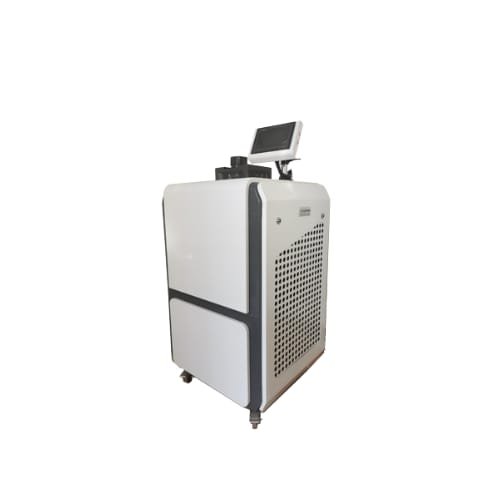

GAO Tek liquid bath temperature calibrator provides high precision temperature control with exceptional stability and uniformity. It is designed with stainless steel construction and advanced compressor refrigeration system. The calibrator ensures accurate results with resolution up to 0.001℃. Suitable for laboratory and industrial applications requiring strict thermal calibration.
Features
- Wide temperature range from -40℃ to 105℃
- Ultra-high resolution of 0.001℃ for precise measurements
- Temperature fluctuation within ±0.01℃ per 10 minutes
- Excellent horizontal and vertical temperature uniformity
- Durable stainless steel tank and shell construction
- Large 18L working volume with 150 × 480 mm area
- Compressor refrigeration system for stable performance
- Easy-to-operate interface with reliable temperature control
Technical Specifications
| Specification | Details |
| Product Type | Liquid Bath Temperature Calibrator |
| Application | Industrial and laboratory temperature calibration |
| Power Source | Electronic |
| Power Consumption | 2W |
| Voltage Requirement | 220V AC, 50/60Hz |
| Protection Class | IP55 |
| Construction Material | Stainless steel tank and shell |
| Cooling System | Compressor refrigeration system |
| Temperature Range | -40℃ to 105℃ / -40℉ to 221℉ |
| Display Resolution | 0.001℃ |
| Temperature Fluctuation | ±0.01℃ per 10 minutes |
| Temperature Uniformity (Horizontal) | ≤0.01℃ |
| Temperature Uniformity (Vertical) | ≤0.02℃ |
| Temperature Control Precision | High accuracy with stable performance |
| Working Area Dimensions | 150 × 480 mm |
| Effective Volume | 18L |
| Working Medium | Soft water |
| Ambient Temperature Requirement | <30℃ / <86℉ |
| Operating Interface | User-friendly with simple operation |
| Stability | Superior long-term thermal stability |
| Safety Features | Built-in protection system |
| Resolution Capability | Ultra-fine 0.001℃ measurement |
| Housing Protection Rating | IP55 for durability and safety |
| Application Areas | Power stations, research labs, industry |
| Dimensions | Compact bench-top design |
| Temperature Range (Detailed) | -40℃ to 105℃ / -40℉ to 221℉ |
| Weight | Approximately 18L system volume capacity |
