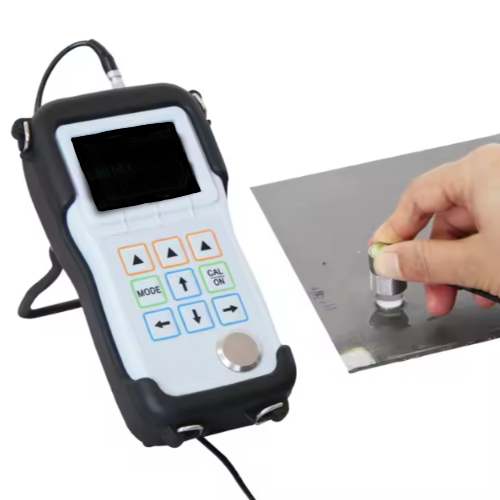

High Precision Dual Layer Ultrasonic Thickness Gauge – Acoustic Testing Pro
Acoustic Testing Pro High Precision Dual Layer Ultrasonic Thickness Gauge offers advanced, reliable, and highly accurate thickness measurement for a wide range of materials.
Overview
Acoustic Testing Pro High Precision Dual Layer Ultrasonic Thickness Gauge offers advanced, reliable, and highly accurate thickness measurement for a wide range of materials. This device is designed for both single and multi-layer ultrasonic thickness applications, capable of measuring coatings, metals, composites, and non-metal surfaces with precision up to 0.001 mm (0.0001 inches). This product features dual-layer measurement capability, allowing simultaneous measurement and display of two layers of material, ideal for coated metals, bimetallic composites, and multi-layer structures. It includes multi-scan and time-difference functions to enhance measurement accuracy, even when interface reflections are weak or difficult to detect. Equipped with versatile software options, this device supports temperature compensation, directional capture, auto freeze, large measurement range, internal oxide scale measurement, data logging, real-time communication, and multi-channel monitoring. The coating measurement mode allows accurate evaluation of thin layers on wood, concrete, composites, and other non-metallic surfaces. This device comes standard with a high-frequency D15A single-element delay line probe, making it suitable for demanding industrial applications. Rugged, portable, and user-friendly, it provides a complete solution for non-destructive ultrasonic thickness testing in pipelines, tanks, structural materials, and more.
Features
- High Accuracy Measurement
- Dual-Layer Measurement
- Wide Material Compatibility
- Advanced Software Options
- Coating Measurement Mode
- Large Measurement Range
- High-Frequency Probe Compatibility
- Visual Display Options
- Data Logging and Real-Time Communication
- Rugged and Portable
Technical Specifications
| Accuracy | 0.0001 inches (0.001 mm) |
| Measurement Modes | P-E, I-E, I-E-E, I-ME, E-EV |
| Measurement Options | Coating mode, Oxide mode, PELR mode |
| Probe Types | Delay line, contact probe, protective film probe, pen-type probe |
| Probe Frequency Range | 0.5 MHz to 20 MHz |
| Calibration Methods | Zero calibration, One-point calibration, Two-point calibration |
| Display View | Time-based B-scan, Live A-scan, waveform adjust, full-screen display |
| Units | mm, inch, micron, mils |
| Dual-Layer Measurement | Yes, with multi-scan and time-difference function |
| Standard Probe | D15A single-element delay line probe, 15 MHz, Microdot connector |
| Item Weight | 9.88 oz (280 g) |
| Package Dimensions | 11.81 in × 9.84 in × 7.09 in (30 cm × 25 cm × 18 cm) |
