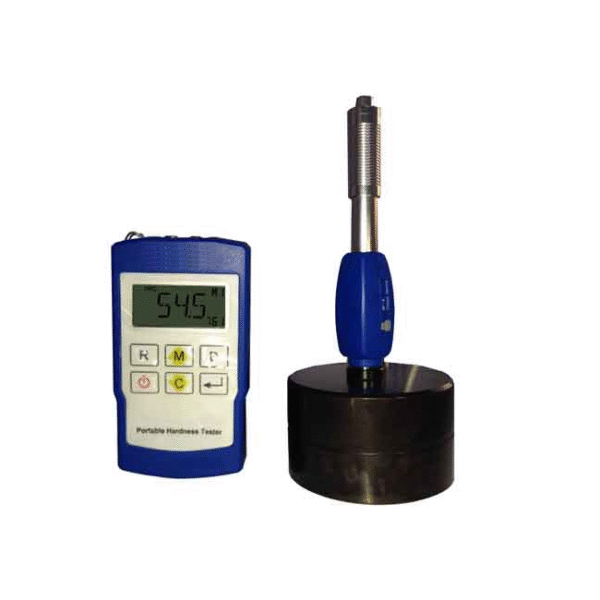

Name: Hardness Tester with R/F Wireless Probe (Linear Accuracy) - Acoustic Testing Pro
SKU: ACTPVO00ZV

Key Features

-Linear accuracy for any angles

– Different probe can be identified automatically

– Dual values( Leeb value and one conversion value) can be displayed at the same screen

– Big LCD display with backlight

– It can connect micro-printer wirelessly

– 400 data for memory

– Customer re- calibration allowed

– Power off automatically

– More economic and more convenient to use

Technical Specifications

– Accuracy:	±HRC0.2
– Display:	Digital LCD with backlight
– Hardness scale:	HL/HRC/HRB/HB/HV/HS/σb
– Measuring range	: HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / σb(rm)255-2639N/mm2
– Impact device	: r/f wireless probe D (default) r/f wireless probe DC / DL / C / D+15 (optional)
– r/f communication distance:	10m in space
– r/f frequency:	2.4GHz
– Impact direction:	Universal angle (UA) type

Materials:	10 common metal materials
– Memory:	400 data can be stored and re-readable
– Statistics:	Calculated automatically
– Re-calibration:	Allowed by user
– Indicator:	Low battery
– Communication interface:	Wireless micro-printer (optional)
– Power off:	Auto
– Power supply:	1.5V AA alkaline battery x 2 for main unit, 3.7V Li-ion rechargeable – battery for wireless probe (charged via USB port)
– Working environment:	14~113F(-10~+45C)
– Dimension	4.8 x 2.6 x 1.18 in (124x67x30mm)
