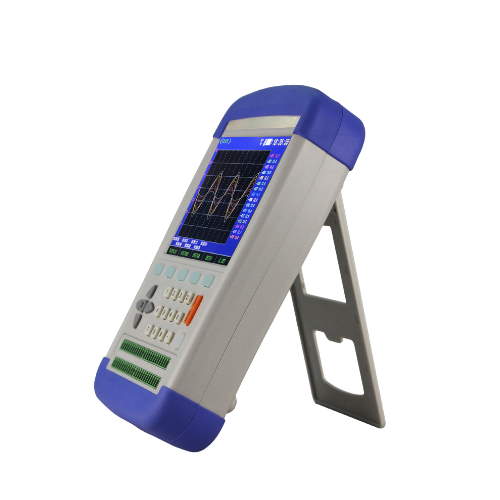

Handheld Multi-Channel Temperature Data Logger 16-Channel Meter – Acoustic Testing Pro
Records precise readings from up to 16 channels with sensors, offering handheld portability and reliable multi-channel temperature monitoring.
Overview
Acoustic Testing Pro Handheld Multi-Channel Temperature Data Logger 16-Channel Meter is designed for precise measurement and recording of temperature from multiple sources simultaneously. This device supports up to 16 channels and uses Pt100 sensors to deliver accurate readings across a wide range of applications, including industrial processes, laboratory research, and environmental monitoring. It offers a handheld, portable design for easy on-site measurements and features a clear display, user-friendly interface, and reliable data storage for later analysis.
Features
- Supports up to 16 independent temperature channels for simultaneous monitoring
- Compatible with sensors for high-precision temperature measurement
- Handheld and portable design for convenient on-site data collection
- Wide temperature measurement range to suit various industrial and research needs
- Clear display with intuitive controls for easy operation
- Reliable internal memory for storing multiple data sets
- Suitable for industrial processes, laboratories, and environmental monitoring applications
Technical Specifications
| Specification | Details |
| Graduation Number | Thermocouple: J, K, T, E, S, B, N, R type; Thermal resistance |
| Basic Accuracy | 0.2% + 33.8 °F (1 °C) |
| Test Range | -200 °C to 1300 °C (-328 °F to 2372 °F) |
| Resolution | 32.18 °F (0.1 °C) |
| Scanning Speed | Fast: 100 ms, Medium: 500 ms, Slow: 1 s |
| Correction | Error correction for each channel |
| Comparator | Overrun alarm; each channel can be individually set over a super value |
| Standard Interface | USB drive interface, Mini (virtual serial port) |
| Standard Software | Data acquisition software |
| Cold End Compensation | Accuracy: 32.9 °F (0.5 °C) |
| Display | TFT-LCD true color display |
| Functions | Fault detection |
| Power Supply | Input: 100 V to 240 V at 50/60 Hz, 0.35 A; Output: 9 V 1 A DC |
| Battery | 8.4 V Li-ion, 6000 mAh rechargeable battery |
| Battery Charging Time | Single continuous charging: max 300 min |
| Battery Working Time | More than 8 hours |
| Weight | 1.43 lb. (650 g) |
| Size | 5.13 in x 8.29 in x 1.49 in (130.23 mm x 210.76 mm x 37.88 mm) |
